Synergy Mineral Resources LTD offers services such as Laboratory Testing; Cargo Superintendence; Petroleum, Clinical and Other Equipents

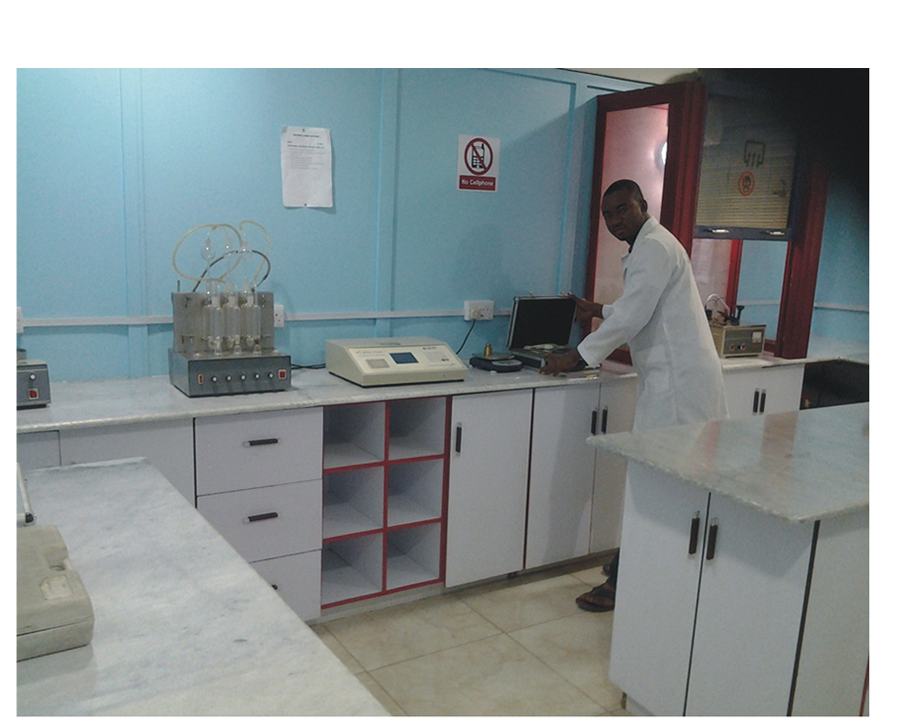

Our state of the art facility is home to the latest in analytical technique to provide precise results to majo player in the industry. SMRL has a comprehensive and testing capability covering the following commodities, but not limited to; Crude Oil, Light Distillate:LPG, LNG, Gasoline.

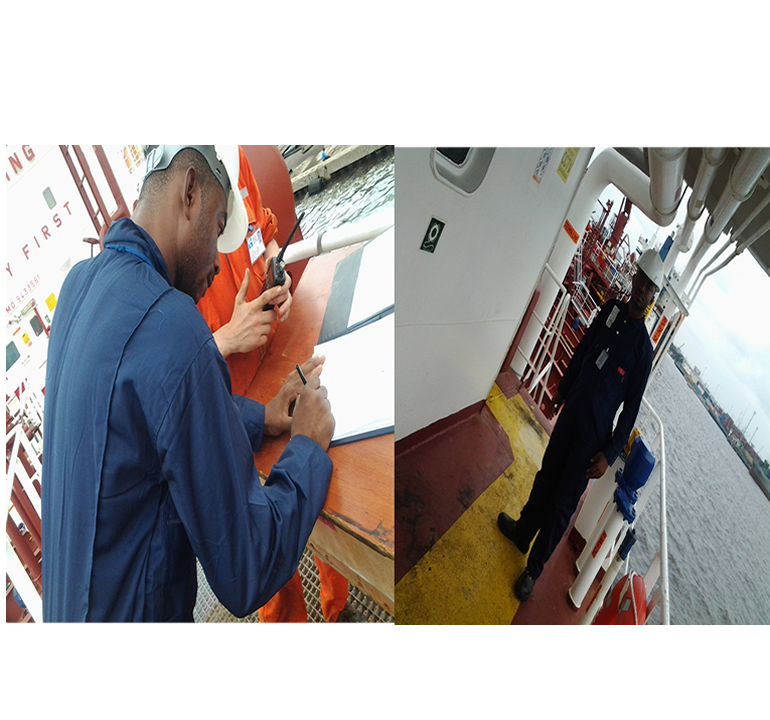

Custody Transfer - Inventory control -Offshore Lightering - Tank Measurement and Calibration; Sampling -Bunker Surveys; Cleanliness inspection -Tank wall wash inspection and testing -Auto sampler operations; Investigation of Cargo Discrepancies and so on..
Our partners U-THERM industries are one of the finest manufacturers of petroleum, medical and other industrial equipments in the world. This equipments are made taking into cognizance the climatic and delicate nature of our environment.
Please find below our product catalogue and details.
The instrument is designed and made as per the ASTM 92 "Test Methods for Flash and Fire Point of Petroleum Products (Cleveland Open Cup Methods), and T0651 "Asphalt Flash Point and Fire Point Test (Cleveland Open Cup Methods)" the Industry Standard Specification and Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. It is used to determine flash point of petroleum products and bituminous materials, excepting fuel oil and materials having a flash point of lower than 79 °C
Features
★ Color LCD large screen display, full English interactive interface, no logo keyboard, Prompt menu guiding type input to the parameters as the pre-value of temperature, the sample label, atmospheric pressure and the date of the test; ★ Simulation trace showing the curve of heating up and test time, with English software prompt modification function with the test date, the test time and other parameters prompts; ★ Equipped with standard RS-323, 485 computer interface, lower computer storing 100 sets of historical data, can be connected to computer for mass storage data and can be stored for a long time, transmission of data, the host computer can modify the lower computer parameters.
Adopt high-luminosity, cotd light source testing technology, with little power consumption, long life-span and Low failure rate.

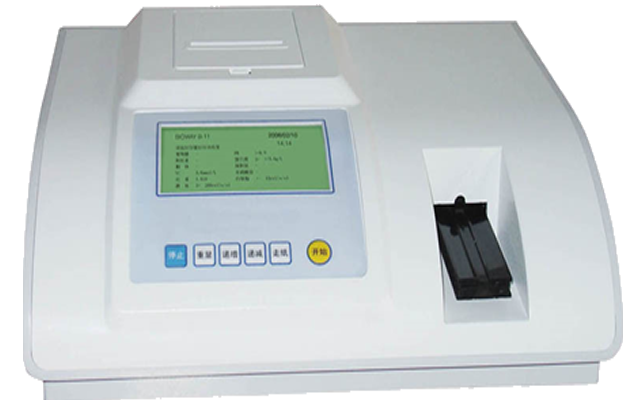

Features
Compatible with 8, 10 and 11 items of testing paper. Display all testing data, testing time numerical value with large screen, liquid crystal display in Chinese and English, and output full Chinese or English result according to requirement. Automatic identification to whether testing paper is placed and automatic feeding to testing paper. Auto prompting to preparing next sample and sample reaction time.

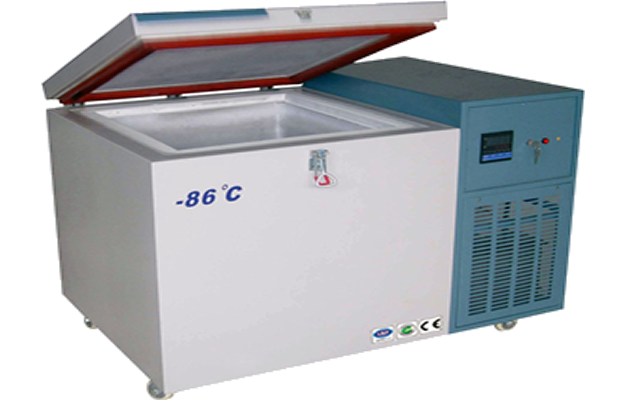

The -86°C Series Ultra-low Temperature Freezer offers a wide variety of research and storage applications, such as low temperature scientific experiments, preservation of plasma, biomaterial, vaccine, biomedical product and testing low-temperature-resistant properties of military products. It is suitable for research institutes, electronic industries, chemical engineering industries, hospital, sanitation and anti-epidemic stations, university laboratories, and military industries.
Technical Features
Refrigeration principle: double-compressor auto cascade Inner Temperature: -90°C Capacity : 60/150/340/500L Temperature Adjustment Range: -10- -90°C Noise : 57db Power: 1200W AMPS: 7A Voltage: 220V 50~60HZ Exterior Dimensions (H*W*D): 1890*810*810(mm) Interior Dimensions (H*W*D):1140*540*550(mm)

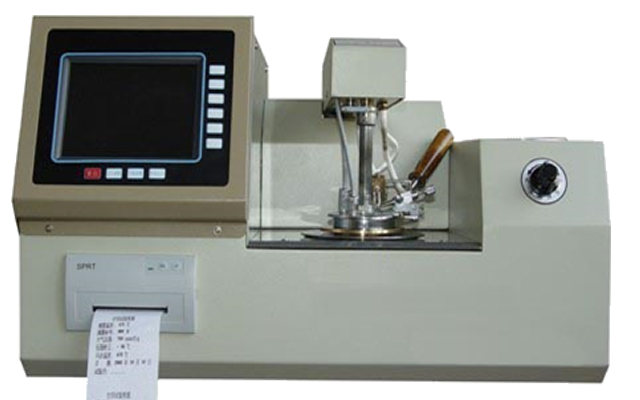

The instrument is designed and made as ASTM D93 "Test Methods for Flash Point of Petroleum Products (Closed Cup Methods)". It is suitable to determine closed cup flash point of petroleum products, which is described as the lowest temperature at which the mixture of a petroleum product sample vapor and air contacts flame and makes a flash when the sample is heated in a closed cup under the stipulated condition.
Technical Features
1. It adopts colored LCD, man-machine conversation interface, and blank buttons. It has prompts menu and guide to choose method A or B, preset temperature, sample serial number, barometric pressure, test data and other parameters. 2. It can simulate and show temperature-time curve. It has prompts for wrong operation and prompts to modify test data, test time, and other parameters. 3. It can save test data of 100 groups. It is equipped with RS-323, and 485 computer ports, so it can save more test data when it is connected to a computer. Then you can also modify some parameters. 4. It can calibrate the effect of barometric pressure to the test and calculate the modified value.
Features
Fully automated, compact, flexible and low cost 3-part differentiation of WBC: 19 parameters + 3 histograms 2 sample modes: whole blood and prediluted Throughput: 60 samples per hour Automatic diluting, lying, mixing, rinsing and clog-clearing Automatic sample probe cleaning Up to 35,000 sample results (including histograms) can be stored Built-in thermal recorder, optional external printer Reagent expired alarm Color LCD display 22 parameters 3-part differ Auto Hematology Analyzer
The corpse cold storage and freezing box /corpse cabinet is a series of product for hospital, funeral parlor, and postmortem examination department to store the corpse.
Precise temperature control system
The worldwide famous high-accuracy computer-controlled temperature system with original binding can maintain the temperature constancy in the box at 3±2°C precisely. The temperature set-value can be adjusted at -16°C~6°C, and the temperature display precision is 0.1°C, the resolution is 0.1°C and the adjusting increment is 0.1°C. The value is to be displayed through three-digital high-brightness figure. The system has special high-resolution temperature calibrating function. That means the set-value figure can be displayed and calibrated at -10.0~10.0°C. The calibrating increment is 0.1°C. The forced cold-air circulation system with intelligence-control fan can ensure the temperature uniformity inside the box.
The instrument is designed and made as per ASTM D93 Test Methods for Flash Point of Petroleum Products (Pensky-Martens Closed Cup Methods)". It is suitable to determine closed cup flash point of petroleum products having a flash point higher than 40 °C.
Technical Specification
1. Power supply: AC 220V±10%, 50 Hz; 2. Heating device: (1) The furnace is made of SiC materials; its power is 600 W; (2) Heating power is adjustable in the range of 0～600W; 3. Sample temperature rising rate: 1～12°C per minute, manually controlled; 4. Electric stirring device: (1) Stirring motor: 45TYZ Motor; (2) Driving device: by a soft shaft; (3) Stirring blade specification: 8×40 mm; 5. Stirring speed: As per the requirement of GB/T261-2008; (1) 90～120 RPM for procedure A; (2) 250±10 RPM for procedure B;
What if you gave someone a gift, and they neglected to thank you for it - would you be likely to give them another? Life is the same way. In order to attract more of the blessings that life has to offer, you must truly appreciate what you already have.
Features
Throughput of 80 samples per hour without operator intervention Fully auto Cap piercing sampler with 50 samples capacity allowing efficient testing Combined with the Cap Piercing Sampler, the flexible Barcode Reader provides positive sample identification, optimizing laboratory efficiency
This Series Cold Traps/Chillers are pint-size chillers that are suitable for Parylene vacuum film plating, chemical petroleum experiments, low-temperature liquid-bath, and medicinal desiccation, vapor-capturing and so on. We can also customize the size and refrigeration methods according to our clients' demands.
The instrument is suitable to determine viscosity resistance and absolute viscosity of liquids. It is designed as per ASTM D44; it is equipped with four spindles, so please select a suitable one as per the viscosity of liquids measured. Technical parameters 1. Viscosity measurement range: 10～100000mPa•s; 2. Measurement error: ±5％ (Newton liquids); 3. Spindles: four spindles, No.1～4; 4. Rotation speed: 6 RPM; 12 RPM; 30 RPM; 60 RPM; 5. Power supply: AC 220v±10％, 50 Hz; .
These are machines that process a large portion of the samples going into a hospital or private medical laboratory. Automation of the testing process has reduced testing time for many analyses from days to minutes. The types of tests required include enzyme levels (such as many of the liver function tests), ion levels (e.g. sodium and potassium), and other tell-tale chemicals (such as glucose, serum albumin, or creatinine).
Features:
It can automatically optimize testing order, reduce waiting time, and improve testing speed. Automatic stirring and mixing, makes the mixture of sample and reagent more even, reaction more perfect. Stand-alone Freon-free environmental protection refrigeration system, refrigerating for 24 hours without a break, guarantee the quality of the reagent. Flexile and open reagent scheme, one reagent is available to many items. .
Type A:K、Na、C Type B:K、Na、Cl、TCO2 Type C:K、Na、Cl、iCa、nCa、TCa、pH Type D:K、Na、Cl、iCa、nCa、TCa、pH、TCO2、Ag Type E:K、Na、Li、 Type F:K、Na、Cl、Li Type G:K、Na、Cl、Li、TCO2 Type H:K、Na、Cl、iCa、nCa、TCa、pH、Li Type I :K、Na、Cl、iCa、nCa、TCa、pH、Li、TCO2、Ag
Technical Features:
The whole running process of the equipment is controlled by acomputer.Also,automatic electric potential tracking and correcting software are adopted to ensure its stable performance. The machines is featured with ultra large color touchable screen with high resolution,human-machine interactive menu,and fault automatic alarming and removing. All these features can greatly improve work efficiency. The machine is free in switching between English and Chinese reports, meeting requirements of different customers. The machine adopts innovative international patent technology such as wave theory flushing method and direct flushing pipe method to avoid block and crossed contamination. Every time putting the specimen into the machine,the machine could simultaneously detect eight ions including K,Na,Cl,iCa,nCa,TCa,pH,Li,TCO2,AG as well as ten parameters. It can absorb the specimen and calibrate the ion automatically,and make analysis quickly. It only takes 25s to finish the process of absorbing the specimen to indicating the result. .
The instrument is designed and made as per ASTM D 1744 "Test Methods for Water Content of Liquid Petroleum Products (Karl Fischer Methods)". It is used to determine water content (50 to 1000 ppm) in the liquid petroleum products by titration using Karl Fischer reagent.
Working Condition:
1. Power supply: AC 220V±10％, 50 Hz; 2. Ambient temperature: 10°C ~ 35°C; 3. Relative humidity: ≤85％; 4. The instrument should be placed on a flat workbench. Please try your best to lower air convection; 5. The instrument should be placed in a dry area if it is not used; .
Features:
Entire wavelength response cup auto blank detection, auto deduct cup blank, remove deviation among cups, makes the result more accurate. Convenient optional-like analysis pattern, batch input, item combination, STAT detect preferentially. Bubbling spring clean, sample needle with Teflon coating and reagent needle force flushing between in and out walls, make the pollution rate minimum. Real time display dynamic detection curve, entirely monitor reaction process. When surpass linearity or sample is wrong, the instrument guarantees the result accuracy and reliability through dilute or change sample automatically. Prefect QC management function, support High, Middle, Low QC, instant method statically processing, display and print STD, dynamic chart. Sample needle and reagent needle have anti-collision and liquid level detection functions, can track and remind reagent residual volume. Stirring needle made of special material is anti-corrosive, high efficiency agitation with no residual liquid. Imported compressor non-fluorine strengthening refrigeration, self-contained power make it refrigerate with 24 hour uninterrupted and make the temperature of reagent tray2℃-8℃adjustable.
Type A:K、Na、C Type B:K、Na、Cl、TCO2 Type C:K、Na、Cl、iCa、nCa、TCa、pH Type D:K、Na、Cl、iCa、nCa、TCa、pH、TCO2、Ag Type E:K、Na、Li、 Type F:K、Na、Cl、Li Type G:K、Na、Cl、Li、TCO2 Type H:K、Na、Cl、iCa、nCa、TCa、pH、Li Type I :K、Na、Cl、iCa、nCa、TCa、pH、Li、TCO2、Ag
Technical Details
The whole running process of the equipment is controlled by acomputer.Also,automatic electric potential tracking and correcting software are adopted to ensure its stable performance. 320 × 240 The machines is featured with ultra large touchable screen with high resolution,human-machine interactive menu,and fault automatic alarming and removing. All these features can greatly improve work efficiency. The machine is free in switching between English and Chinese reports, meeting requirements of different customers. The machine adopts innovative international patent technology such as wave theory flushing method and direct flushing pipe method to avoid block and crossed contamination. Every time putting the specimen into the machine,the machine could simultaneously detect eight ions including K,Na,Cl,iCa,nCa,TCa,pH,Li,TCO2,AG as well as ten parameters. It can absorb the specimen and calibrate the ion automatically,and make analysis quickly. It only takes 25s to finish the process of absorbing the specimen to indicating the result.
The instruments is designed and made as per the ASTMD 92 "Test Methods for Flash Point and Fire Point of Petroleum Products (Open Cup Methods)" and Industry Standard of Petrochemical SH/T0318 "Technical Requirements for Open Cup Flash Point Tester". It is used to determine the flash point and fire point of lubricating oil and Dark petroleum products.
Technical Parameters
1. Power supply: AC 220 V±10%，50Hz; 2. Outer crucible: a) Material: Carbon structural steel; b) Diameter of upper opening: Φ100±5 mm; c) Height: 50±5 mm; d) Diameter of bottom: Φ56±2 mm; 3. Inner crucible: a) Material: Carbon structural steel; b) Diameter of upper opening: Φ64±1 mm; c) Height: 47±1 mm; d) Diameter of bottom: Φ38±1 mm; e) Scale line: there is a line 12 mm away from the rim of upper opening and a line 18 mm away from the rim of upper opening. 4. Gas tube: the diameter of nozzle isΦ0.8～Φ1 mm. The inner surface of tube is smooth and it can adjust flame to 3 to 4 mm. 5. Heater: Heated by an electric furnace. Heating power is 1000 W and adjustable. 6. Thermometer: 0～360 °C; each scale division is 1 °C. It conforms to ASTMD514. 7. Ambient temperature: ≤35 °C; 8. Relative humidity: ≤85％; 9. Total power consumption: not more than 1100 W; 10. Dimensions(m): 0.41*0.36*0.24
Features
Optional-like discrete system, simultaneously detect 30 items. Entire wavelength response cup auto blank detection, auto deduct cup blank, remove deviation among cups, makes the result more accurate. Advanced optical fiber back spectroscopic colorimetric system, guarantee the test result precise and stable. Independently design with two needles and two trays, complete the automatically add sample, reagent and stir with high efficiency, test speed: 200 test/h. Convenient optional-like analysis pattern, batch input, item combination, STAT detect preferentially. Bubbling spring clean, sample needle with Teflon coating and reagent needle force flushing between in and out walls, make the pollution rate to minimum. Real time display dynamic detection curve, entirely monitor reaction process. When surpass linearity or sample is wrong, the instrument guarantees the result accuracy and reliability through dilute or change sample automatically. Prefect QC management function, support High, Middle, Low QC. Instant method statically processing, display and print STD, dynamic QC chart. Sample needle and reagent needle have anti-collision and liquid level detection functions, can track and remind reagent residual volume. Stirring needle made of special material is anti-corrosive, high efficiency agitation with no residual liquid. Adopt advanced cool system, self-contained power makes it refrigerate with 24 hour uninterrupted, make the temperature of reagent tray be up to 8℃.

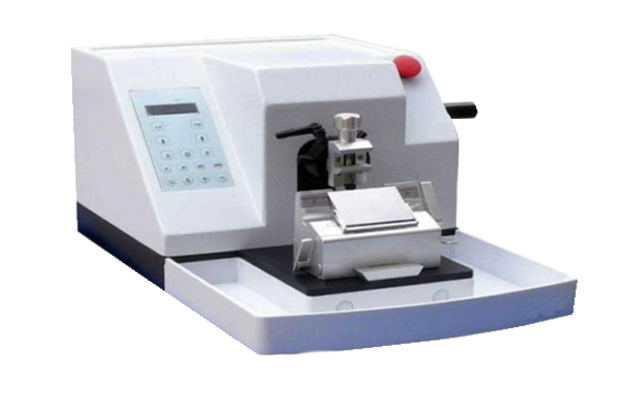

Automatic Microtome is a newly-developed products based on semi-automatic microtome by our company. It brings together the essence of designs, and manufactures in our company, owns the intellectual property and is ideal biopsy histopathology instrument. Adopting streamline design, it has advanced functions and reliable performance and is easy to operate. The transmission feed system is controlled by intelligent programs, which can switch manual and electric smart chips fast and the speed of automatic slice can be adjusted and has a security emergency braking system. Sophisticated electronic and mechanical design and manufacturing ensures the accuracy of the complex, so that better results can be obtained. Intelligence operations reduce labor intensity and meet the ergonomic principles.
Features
1. Applying imported advanced driving system, which has the functions of repairing, slicing, fast forward, rewind and conversion; 2. Liquid crystal display slice thickness, repair thickness and slice count; 3. Both slice and repair can be done by the controlling system ; 4. Hand wheel lock in any position to guarantee the safety of sectioning; 5. Large capacity waste tanks that is convenient to assembly and disassembly ; 6. Fast and convenient exchangeable specimen chuck, namely, throw-away embedded and paraffin-embedded chuck; security alarm system; 7. Can conduct manual or automatic slice quickly 8. Automatic slice has two modes—manual and continuous, and automatic slicing speed is continuously adjustable; 9. Free switching of repair and slice; 10. Security alarm system, driving overload protection and automatic sleep protection; 11. It has man-machine dialogue operation display mode, using the latest international products OLED display module, which has the features of high brightness, high contrast, wide viewing angle, fast response, wide temperature range as low power consumption. 12. Safe emergency braking system.
The instrument is designed and made as per the ASTMD 92 "Test Methods for Flash and Fire Point of Petroleum Products (Cleveland Open Cup Methods)", It is suitable to determine flash point and fire point of petroleum products having a flash point higher than 79 °C, excepting fuel oils.
Main Technical Specifications and Parameters
1. Power supply: AC 220V±10%, 50 Hz; 2. Heating device: It is a quartz tube heater, so there is no flame appears. Explosion protective; its power can be continuously adjusted in the range of 0∼600W; 3. Flame application device: automatically scan; 4. Thermometer: -6～400°C; Each scale division is 2 °C; as per GB/T514; 5. Ignition device: (1) Ignition source: coal gas (or any other combustible gas); (2) Spout aperture: 0.6∼0.8 mm; 6. Ambient temperature: -10°C∼50°C; 7. Relative humidity: ≤85%; 8. Total power consumption: not more than 650 W; 9. Dimensions (m): 0.48*0.4*0.3

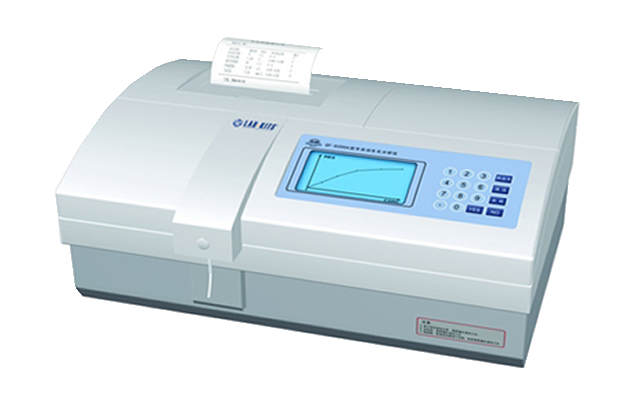

• Grating as dispersion element, with adjustable wavelength, long life span, without the trouble of changing filter. • Full open programming, suitable for all kinds of reagents. • Large screen, English and image display, report print in English.
Main Technical Specifications
• Wavelength range: arbitrary setup between 330-800nm • Wavelength precisio：±1nm • Absorbency testing range：-0.3-3.0Abs • Absorbency resolution：0.001Abs(display)0.0001Abs（inner） • Stability：≤0.002Abs/h • Crossed contamination：<1% • Flow comparator cell：10nm 32ul • Temperature control：25℃、30℃、37℃、room temperature • Temperature accuracy：±0.1℃ • Absorbing sample capacity one time: arbitrary set between 100ul and 2000ul • Display Large screen, English liquid crystal display • Printer build.in wide line high speed thermal sensihve printer, printing English report sheet, with the function of inspecting result and judge • Power supply：220V±15% 50Hz ±2%
This machine brings the essence of our company's technology, adopts advanced design concepts, technology required by modern histopathology as well as ergonomic design and structure that is easy to clean. Its main components are all imported, which enables this microtome the most advanced technical products and the perfect combination of electronic and mechanical.
Features
1. Applying imported advanced driving system, which has the functions of repairing, slicing, fast forward, rewind and conversion; 2. Liquid crystal display slice thickness, repair thickness and slice count; 3. Both slice and repair can be done by the controlling system; 4. Hand wheel lock in any position to guarantee the safety of sectioning; 5. Large capacity waste tanks that is convenient to assembly and disassembly; 6. Fast and convenient exchangeable specimen chuck, namely, throw-away embedded and paraffin-embedded chuck; security alarm system;
The instrument is designed and made as per ASTM D1665 "Test Methods for Engler Viscosity of Petroleum Products". It is used to determine the ratio obtained by dividing the time of flow, in s, of 200 ml of material using an Engler viscometer at a selected temperature by a factor representing the time of flow, in s, for an equal volume of water at 20 °C. The ratio is the Engler viscosity of the sample.
Technical Parameters
1. Standard water value: 51±1 s; 2. Temperature range: 0～100°C; 3. Temperature controlling accuracy: ±0.2°C; 4. Engler viscosity thermometer: As per GB/T514; 5. Graduated flask: 200±0.2ml; 6. Inner container: made by stainless steel; 7. Power of heater: 550 W 8. Accuracy of timer: 0.01 s; 9. Dimensions (m): 0.51*0.36*0.27
These are machines that process a large portion of the samples going into a hospital or private medical laboratory. Automation of the testing process has reduced testing time for many analyses from days to minutes. The types of tests required include enzyme levels (such as many of the liver function tests), ion levels (e.g. sodium and potassium), and other tell-tale chemicals (such as glucose, serum albumin, or creatinine).
Technical Parameters
Wavelength range: arbitrary setup between 330-800nm Wavelength Accuracy：±1nm Absorbance testing range：-0.3-3.0Abs Absorbance resolution：0.001Abs(display)0.0001Abs（inner） Stability：≤0.002Abs Cross contamination：<1% Quartz flowing cell：10nm 32ul Temperature control：25℃、30℃、37℃、room temperature Temperature precision：±0.1℃ One time sampling capacity: arbitrary set between 100ul and 2000ul Display：10.4" color, liquid, crystal, Chinese display Printer: build-in 110mm wide line high-speed thermal sensitive printer, printing English report sheet, enjoying the function of detection of detecting results, enjoying the function of inspection and judge Power supply：220V±15% 50Hz ±2%
Type A:K、Na、Cl Type B:K、Na、Cl、TCO2 Type C:K、Na、Cl、iCa、nCa、TCa、pH Type D:K、Na、Cl、iCa、nCa、TCa、pH、TCO2、Ag Type E:K、Na、Li、 Type F:K、Na、Cl、Li Type G:K、Na、Cl、Li、TCO2 Type H:K、Na、Cl、iCa、nCa、TCa、pH、Li Type I :K、Na、Cl、iCa、nCa、TCa、pH、Li、TCO2、Ag
Technical Characteristics
The whole running process of the equipment is controlled by acomputer.Also,automatic electric potential tracking and correcting software are adopted to ensure its stable performance. There are only two press button(i.e YES and NO)on the equipment while the menu is completely in English. Once there is a failure,the equipment will automatically prompt and remove it. It is really convenient. The machine adopts innovative international patent technology such as wave theory flushing method and direct flushing pipe method to avoid block and crossed contamination. Every time putting the specimen into the machine,the machine could simultaneously detect eight ions including K,Na,Cl,iCa,nCa,TCa,pH,Li,TCO2,AG as well as ten parameters. It can absorb the specimen and calibrate the ion automatically,and make analysis quickly. It only takes 25s to finish the process of absorbing the specimen to indicating the result. After conducting analysis to specimens,the equipment will automatically flush,keeping the electrode standby in clean status. It has a ultra large screen with completely English display,which is quite clear for operators . The built-in printer can print out the result , so it's very quick and convenient. The equipment is set with quality control correction procedure,and capable of correcting measured data automatically,as well as by the two parameters of pith and average deviation. The equipment is capable of storing 1000 result, and it can be extended to be more than 10000.The equipment will automatically refresh once it reaches the store limit. Our services offices are distributed all over the nation. Users are regularly visited, and their problems as well worries will be removed.
The instrument is designed and made as per ASTM D1665 "Test Methods for Engler Viscosity of Petroleum Products" and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is used to determine the ratio obtained by dividing the time of flow, in s, of 200 ml of material using an Engler viscometer at a selected temperature by a factor representing the time of flow, in s, for an equal volume of water at 20 °C. The ratio is the Engler viscosity of the sample. The instrument can make determination for 2 samples at the same time in the same temperature environment. It can also calculate the average value of these test results. It is the best instrument for Engler viscosity of petroleum products and bituminous materials determination.
Technical Parameters
1. Power supply: AC 220V±10%, 50Hz; 2. Standard water value: 51±1 s; 3. Temperature range: 0～100°C; 4. Temperature controlling accuracy: ±0.1°C; 5. Engler viscometer thermometer: as per GB/T514; 6. Graduated flask: 200±0.2ml (50±0.2ml for bituminous materials); 7. Inner container: Made by stainless steel; 8. Timer: Max is 9999 s; 9. Timing mode: timing by a LED; 10. Heating power: 700 W; 11. Ambient temperature: -10～+40°C; 12. Relative humidity: ≤85%; 13. Total power consumption: not more than 800 W; 14. Dimensions (m): 0.63*0.49*0.76
Technical Parameters
Display 240×128 LCD Touch screen(blue Backlight) Computer Connector RS232 9 needle Suitable Micro plate Type 96 wells, Flat bottom, U bottom, V bottom Shake 3 kind of intensity, can fit the exact time Memory 200 programs, 1000 plates result Light Source Tungsten Halogen lamp, lamp saver function, 12V,20W Wavelength range 400-750nm Optical sensor 8 photodiode Standard filters 405,450,492,630nm standard filter 4， Optional filters 4free positions for optional filters Reading speed single wavelength＜5sec/single, Duble wavelength＜10sec Absorbance range 0.000 - 3.500 Abs Resolution 0.001 Abs Stability ±0.003 Abs Accuracy ΔA≤±0.01（0≤A<1.0）； ≤2.5%（A≥1.0）； Sensitivity ≥0.01 Abs Repeatability ≤0.2% （0≤A≤1.5Abs）； ≤1.0% （A﹥1.5Abs）； 8 Channel differences ≤0.02 Linearity ≥0.999 Internal printer 57mm thermal printer Voltage AC 100-240V, 50Hz/60Hz Power 90VA Volume(Instrument) 318*286*168mm Net weight 6.5Kg Gross weight 8.7Kg Outer box 45*41*29cm Working temperature 10℃—30℃ Working humidity ≤ 85% Storage temperature 0℃—55℃ Storage humidity ≤ 95% Operation language: English and Chinese PC software optional accessories
This machine is a newly developed product to meet the needs of modern pathology tests. Adopting imported roller guide rail and high-precision roller screws, it is of reasonable design, tight structure as well as high precision, and is stable and reliable.
Main Features
1. Adopting ergonomic design, it is comfort to operate and without fatigue. 2. Ideal slices can be obtained by using standard slicing knife or disposable blade 3. Samples chuck can be freely locked in three-dimensional axis, which is easy to adjust the angle of the sample sectioning. 4. Imported advanced driving system, fast forward and rewind, easy to repair slice. 5. The right operation wheel can be locked freely to provide maximum security and convenience 6. Digital display slices thickness, convenient and fast. 7. Samples return and samples chuck system can be replaced. 8. Knife base can conduct vertical and horizontal movement without manual operation. 9. N-type steel knife holder and throw-away E-type holder for blade. 10. Sealed box cover without disassembly and convenient to clean. 11. Large capacity waste tank to facilitate removal.
The instrument is designed and made as per ASTM D1744 "Test Methods for Water Content of Liquid Petroleum Products (Karl Fischer Methods)". It is suitable to determine water content in the liquid petroleum products by titration using Karl Fischer reagent. Adopt a microprocessor for control, so it has characteristics of rapid determination speed, high precision, LCD display, and automatic print. It also has function of self-diagnostics, menu selection. It is a multifunctional, convenient, and automatic analysis instrument.
Technical Parameters
1. Titration mode: Coulometric titration controlled by a microprocessor; 2. Measurement range: 1μg～100mg (Representative value: 10μg～10mg); 3. Electrolysis control: Automatic electrolysis current control (Max is 400 mA); 4. Titration speed: 2 mg/min (Maximum); 5. Test accuracy: 10μg～1mg±3μg; It will be 0.3% for more than 1 mg (not including sample filling error); 6. End point: information display, buzzer alarm, and indication light is on; 7. Date: Year Month Day Hour Minute Second; 8. Printer: 16 characters width pin-printer. Paper width is 44 mm;9. Power supply: AC 220V±10%, 50Hz±5%; 10. Power: 60 W; 11. Ambient temperature: 5～40°C; 12. Relative humidity: ≤90%; 13. Size: 290×380×120 (mm); 14. Weight: 9 Kg;
Features
• Big screen LCD display, English graphical interface touch screen input choosing to equip outlay mouse and keyboard simple and easy for operation. • The whole-new operation system, with integrated software of immunity analysis can make direct Chinese input of hospital management and patients' information. • 8-channel optical fiber high speed scanning special center orientation for elisa hole leads to quick and correct measuring result. • Single-board multi-item testing, even 12 kinds qualitative or measurable testing can be done simultaneously on the same board. • Complete quality-control way, owning the function of LJ method X,S method and instant method and double quality-control function by multi-role can display, store print quality-control data and quality-control chart of each item • Visible and flexible board collocation, freely setting of position and quantity of blank comparison standard and sample. • The instruments can intelligently judge the state of blank comparison and standard according to the requirement of the program parameter. • Strong database can store 500 program parameters 200 thousand testing results and more than 2 years of quality-control data and quality-control chart and freely display and print as well. • The CO value and standard curve of all items can be stored permanently and be called out and printed out momentarily. • Automatic single/double wavelength examination support many kinds of qualitative or measurable analytical models. • Support many kinds of built-in and outlay printers print the whole report, program report and quality-control and patient general report. • With the function of all-scale query and statistics convenient for the management of sections. • The intelligent resting protection functions for prolonging the life-span of lamp. • The Elisa workstation software can be chosen to equip with as well.
This machine is composed of rotary microtome and fast freezing system. Its freezing system adopts high-power thermoelectric refrigeration principles, advanced nano-materials and intelligent liquid crystal display, which has a variety of functions such as temperature setting and displaying, automatic constant-temperature controlling, automatic protection system (alarm), automatic frost, memory and slice returning as well as fast repair. Its sample chuck can be fast exchanged, hand wheel can be locked at any position, and thus it is of good performance and high efficiency. Furthermore, the reliable temperature adjustment is conducive to its slicing effect, which makes it the ideal product used in biological histology and clinical pathology.
Technical Parameters
1. Slice thickness: 1~25μm 2. Maximum paraffin slice area: 35×25mm 3. Minimum scale of slice adjustment: 1μm 4. Slice error: ± 10% 5. Preset temperature: room temperature - -55 ℃ 6. Maximum temperature difference of freezing table: ≥ 60 ℃ 7. Maximum temperature difference of cold knives: ≥ 50 ℃ 8. Maximum area of freezing table: 45 × 40mm 9. Cold knife and freezing table have all-English display of preset temperature and real-time temperature 10. Cold knives and slicer forms into a 60 ° angle, easy to slice and patch 11. Defrost temperature display, automatic recovery of freezing after defrosting 12. With the function of memory and automatic recovery to automatically keep the preset temperature after running 13. 4-7 minutes cooling can help it reach the slice temperature 14. Dimension: 290 × 300 × 220mm (SF-202), 420 × 190 × 410mm (SF-VI) 15. Weight: 21kg (SF-202), 8kg (SF-VI)
The instrument is designed and made as per ASTMD 95 "Test Methods for Water Content of Petroleum Products". It is suitable to determine water content in the petroleum products. It is also suitable to determine water content in the grease as per ASTM D95 "Test Methods for Water Content in the Lubricating grease".
Technical Parameters
1. Power supply: AC 220V±10%，50Hz; 2. Heating power of electric furnace: 1000 W; 3. Heating control: by a bidirectional silicon controlled rectifier; 4. Ambient temperature: ≤35°C; 5. Relative humidity: ≤85%; 6. Total power consumption: not more than 1100 W; 7. Dimensions (m): 0.58*0.35*0.30

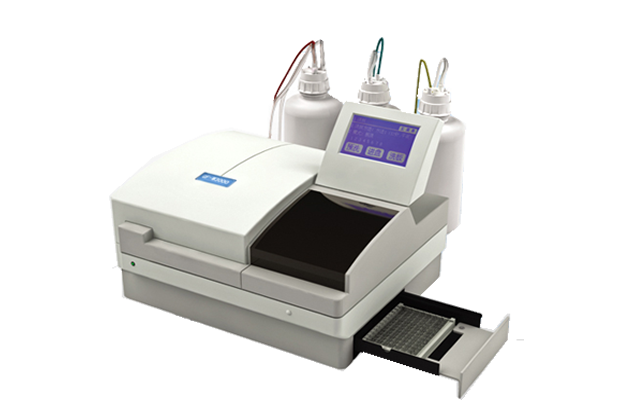

Direct-viewing touch screen click, the plate freely pass in and out, easily get and put the board. Enclosed washes the board, making the washing process isolated from outside, avoiding the crossed contamination.
Functions
The touch screen menu operation, self-define board type and wash mode Discretionarily arrange wash process, setup cycling start point\end point and cycling times; Needles of imbibitions and injection can be separated and moved, and also be pre cleaned. The injection speed can adjust anti-overflow fluid. Imbibitions needle horizontal position can be adjusted. Wash Mode: Convention\Two-point and Cleaning imbibitions. Washing tips can be auto positioned; the height of feeding and imbibing can be adjusted. The pipeline has the function of automatic washing with fixed time, and the washing time can be adjusted.
The machine is developed based on users' feedback and advanced technology. It is widely used for bio-physiology research, teaching, scientific research institutions and so on. It is specially designed to slice fresh animal and plant specimens or those after a fixed processing without freezing and embedded of the specimens. Therefore, samples can maintain its vitality and good shape without ice crystal damage. This instrument provides good conditions for "Immunocyto chemistry" and "spinal cord and brain slice studies of neurobiology" provides, thus is the most desirable rapid sample prepare microtome of experimental system in the fields like contemporary electron microscopy, anatomy, Histology and Embryology, physiology, biology, scientific research, etc. After the use of relevant institutions and research departments, this instrument is applicable for slicing fixed brain and spinal cord and other tissues with the thinnest piece up to 10μm; fresh brain, heart, kidney and so on, up to 30μm. It is featured with complete slice, smooth surface and uniform dyeing.
Technical Parameters
1. Slice speed: 0-1.3mm / s (stepless speed regulation) 2. Vibration amplitude: 0-1mm (adjustable) 3. Lift range of sample table: 9mm 4. Slight adjustment of slice thickness: 1μm (minimum) 5. Slice thickness> 10μm 6. Slice knife angle: 15 ° 7. Dimension: 400x220x300mm 8. Weight: 12kg
The instrument is designed and made as per ASTMD 95 "Test Methods for Water Content of Petroleum Products". It is suitable to determine water content in the petroleum products. It is also suitable to determine water content in the lubricating grease as per ASTM D95 "Test Methods for Water Content of Lubricating Grease". The instrument has a united structure, so it can determine two samples at the same time.
Technical Parameters
1. Power supply: AC 220V±10%, 50 Hz; 2. Heating power of electric furnace: 1000W×2; 3. Heating control: By Bidirectional silicon controlled rectifier; 4. Ambient temperature: ≤35°C; 5. Relative humidity: ≤85%; 6. Total power consumption: not more than 2200 W; 7. Dimensions (m): 0.69*0.57*0.31
Technical Parameters
Manifold: 8pin and 12 pin Mode: Strip mode and Plate mode Strips: 1-12 or 1-8(according to the manifold) Dispense Volume: 50-999ul(increase 5ul with progressively) Aspiration time: 1-99 Pause duration: Strip mode:0-99minutes99seconds,Plate mode: 0-99minutes99seconds (increase 1 second with progressively) Soak time: 0-99minutes99seconds(increase 1 second with progressively) Dwell time: 0-99minutes99seconds(increase 1 second with progressively) Prewash time: 5-99seconds(increase 1 second with progressively) Bottle volume: 2L,3pcs(Rinse bottle, Detergent bottle, Waste bottle),with liquid level Sensor Residual Volume: ≦2ul Repeatability with charging Volume： ≦5% With a fluid way Dual pump Structure Charging pump positive pressure: 200Kpa Imbibitions pump Negative pressure: 60Kpa Liquid Exhaust Detergent:50ml/plate;Prewashing:15ml Input power: 150VA Power supply: AC（110-240V） 50Hz/60Hz Display: 240X128 LCD(Touch screen) input mode: Touch with large screen, keyboard entry Imbibitions speed: 1-6grade(Select for free) Imbibitions time: 3-99seconds(increase 1 second with progressively) Imbibitions Mode: Convention\Imbibitions with two point\Cleaning Micro plate type: U/V/Flat style Plate cut instal:l 10 species STBY: Automatic washing function(The standby state with channel) Programe enable Charging\Imbibitions\Dwell\Soak\Shake board\Circulate, sequential ganization with random order Net weight: 9.6Kg Gross weight: 12.5Kg Volume(Instrument): 48cm×33cm×14cm Outer box: 51*45*48cm
Functions
1. The unique exterior design: the clamshell doors, pneumatic rod support; wide viewing window; with 126 bright LED for lighting, high efficiency, wide range, long life, safe and reliable. 2. Large-screen LCD, Chinese menu, simple operation, showing detailed information; 3. The unique single and double core barrel operation modes can run in three modes: single core barrel operation mode, two core barrels simultaneously running mode, single core barrel shifting to double core barrels running mode; 4. With the method of electromagnetic absorption for shifting cover (barrel), generates strong magnetic power (up to 15Kgf) to adsorb cylinder cover and core barrels, reliable and stable; 5. Adopting the way of separate heating and temperature control for the four paraffin cylinders; 24V DC heating tube, temperature sensor inside the paraffin cylinder with high heating efficiency and precision of temperature control; 6. The fourteen cylinders are all calibrated, which facilitates liquid change and compensation; 7. Blackout protection, the machine can automatically convert, DC power supply, may continue to work, so that samples are prevented from damage; 8. Environment-friendly sealed inner circulation air purification equipment to completely eliminate the volatilization of weak gases, thus ensure a healthy environment for users;Technical Parameters
1. Hydraulic cylinder number: 14 (1 preparing cylinder, 9 hydraulic cylinders and 4 paraffin cylinder) 2. Capacity for a single cylinder: 1800ml 3. Lid-take-off way mode: electronic absorption 4. Running program: in automatic mode can change running programs without resetting to facilitate users; 5. Processing time of a single cylinder: each can be set within 0 to 99 hours and 59 minutes; 6. Boot delay time: free set within one year; 7. Jitter cylinder number: free set within 1 ~ 59 minutes 8. Shaking times of cylinder replacement leachate: 2 9. Residence time for cylinders replacement: 5 seconds (to achieve the best results, the shorter the better, to prevent sample drying) 10. Input voltage: AC220V, ± 10% 11. Frequency: 50 ± 1 HZ 12. Power: <600 W 13. Dimension: 1220 × 420 × 500 mm
The instrument is designed and made as per ASTM D4006"Test Methods for Water Content of Crude Petroleum". It is suitable to determine water content in crude petroleum.
Technical Parameters
1. Power supply: AC220V±10%, 50Hz; 2. Heater: By an electric heater. Its power can be continuously adjusted. 3. Distillation flask: 1000 ml; 4. Water receiver: 5 ml; its scale division is 0.05 ml; 5. Condenser: 400mm±5mm; 6. Ambient temperature: -10°C～+35°C; 7. Relative humidity: ≤85％; 8. Dimensions (m): 0.82*0.5*0.26
Automated coagulation machines or Coagulometers measure the ability of blood to clot by performing any of several types of tests including Partial thromboplastin times, Prothrombin times (and the calculated INRs commonly used for therapeutic evaluation), Lupus anticoagulant screens, D dimer assays, and factor assays. Coagulometers require blood samples that have been drawn in tubes containing sodium citrate as an anticoagulant. These are used because the mechanism behind the anticoagulant effect of sodium citrate is reversible. Depending on the test, different substances can be added to the blood plasma to trigger a clotting reaction. The progress of clotting may be monitored optically by measuring the absorbance of a particular wavelength of light by the sample and how it changes over time.
Features
Preheating counter:4 pieces (for double-channel), 1 piece (for single channel), prompt sound arriving time. Permanently store fixed standard curve. Linkage adding sampler, automatic touching-off testing. LCD crystal, Chinese display, man-machine dialogue operation, easy to learn. Built-in temperature sensing printer, printing single sample, single item and universe report. Full open program, arbitrary choice for reagent. Relative movement of steel ball is not be influenced by original blasma viscosity. The tested plasma is not interfered by icterus, hemolysis, chle, turbidity, etc.
The instrument adopts high-power ultrasonic vibration and precise temperature control to make the general tissue processing quickly and perfect; and the application of 30 minutes report provides basis for customers' choice; single channel temperature, dual-channel real time display; light touch button easy to clean, simple and intuitive operation; microcomputer chip design with memory function to enable easy operation; adjustable ultrasonic power facilitates tissue processing of different sizes; drain valve connections at the bottom of working tank.
Technical Parameters
1. Preheating time: 20min; 2. Temperature adjustment range: 40 ℃ ~ 100 ℃ adjustable step 3. Temperature control accuracy: ± 2 ℃ 4. Working time adjustment range: 1min ~ 99min step adjustable 5. Tissue processing tank volume: 270 × 210 × 70mm 6. Ultrasonic nominal frequency: 1MHz 7. Environmental temperature: 5 ℃ ~ 40 ℃, relative temperature: ≤ 80%; 8. Power supply: AC220V ± 22V, 50Hz ± 1Hz; 9. Power: 500W 10. Dimension: 540x400x220mm 11. Weight: 15kg
The instrument is sophisticated designed as per ASTMD 445. It adopts advanced mechanical design and manufacture techniques, and microprocessor controlling technologies, it can accurately collect test data; Take a blue background light, ultra-brighten LCD as its display, so it can display test data intuitively; Designed with a RS232 port, so it can print out test data through a printer, and it can communicate with a computer using the software attached. It is sensitive, reliable, beautiful and convenient to be operated. It is used to determine absolute viscosity of Newton liquids and apparent viscosity of non-Newton liquids. It can be widely used for determining viscosity of grease, paint, plastic, medicine, dope, adhesive, and washing solvents, etc.
Technical Parameters

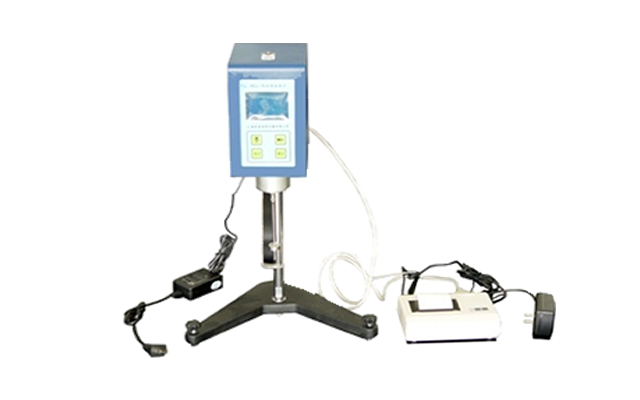

1. Measurement range: 10～2000000mPa•s; 2. Spindles: four spindles of N0.1～4; 3. Spindle speed: 0.3, 0.6, 1.5, 3, 6, 12, 30 and 60 RPM; 4. Measurement error: ±3% (F•S); 5. Power supply: AC 220V±10%, 50Hz±10%; 6. Power supply: (1) Ambient temperature: 5 °C～35 °C; (2) Ambient humidity: not more than 80%;
1. Reliable and advanced technology. 2. Safe and operated protection-environmental design. 3. Computer and practical functions. 4. Perfect calibration scheme of quality control.
Technical Parameters
• Working principle: Count by resistance method, SFT method without cyanide. • Testing parameter: Trisection of WBC, 23 parameters (including color histogram of WBC, RBC, PLT) • Sample dosage: Anticoagulation whole blood of 9.6ul, anticoagulation distal blood of 9.6ul, pre-dilution distal blood of 20ul. • Working mode: Counting channel testing plus independent hemoglobin testing system, continuous turning-0n of 24 hours, automatic dormancy and waking function. • Micro hole aperture: WBC: 100um. RBC/PLT: 80um • Storage of result: Automatic storage of all results of 120O0 pieces including 3 histograms. • Rate of crossed contamination：WBC、RBC、HGB<0.5%、PLT<1% • Index: Precision value linear range WBC≤2.0% 0.0-99.9×109/L RBC≤1.5% 0.00-9.99×1012/L HGB≤1.5% 0-300g/L MCV≤0.4% 40-150fL PLT≤4.0% 0-999×109/L • Display screen: big-screen color liquid crystal display, 640x480 resolutions. • Interface: 1 parallel printing interface, 2 USB interface, 2 PS/2 interface, 2 RS232 interface (support networking). • Print report: Build-in high effective thermal sensitive printer, 8 choices of English report format, optical to multiple outside printers. • Working environment: temperature：10℃-35℃，humidity10%-90%，available in altiplano. • Power：AC220V 50Hz
1. Computer automatic program control that can preset any boot or shutdown time within a day or a week; 2. Using silicone rubber heating element, quick and uniform heating, energy-saving and reliable; 3. Using integrated module for temperature measurement from U.S. company DALLAS, with high precision and reliable performance, liquid crystal display; icon display of working status; 4. Paraffin cylinders, paraffin mouth, left and right saving box and working table work independently, five temperature control channels and multi-temperature protection devices; safe, reliable and energy saving; 5. With memory and automatic recovery functions, automatically keep the preset temperature after running; 6. Split design, free combination of embedded centre and freezing table; 7. Using new frequency-conversion compressor with freezing temperature adjustable; 8. The temperature of freezing table can be set as ＋50℃～－35℃; 9. Small cooling units can freeze embedded tissues; 10. Large capacity (5 litres) of melting paraffin cylinder to ensure the completion of embedded tissue at one time; 11. Low-voltage lighting system, safe and reliable, manual and foot-operated switches; 12. The heating of working table and storage units facilitate tissue embedding; 13. High precision of time showing of the clock, convenient timing;
Technical Parameters
1. Adopt international advanced heating concepts; 2. Paraffin cylinder capacity: 5 litres; 3. Temperature control range of tweezers saving table: room temperature ~ 99 ℃; 4. Temperature control range of melting paraffin cylinder: room temperature ~ 99 ℃; 5. Temperature control range of saving box: room temperature ~ 99 ℃; 6. Temperature range of working table: room temperature ~ 99 ℃; 7. Temperature control accuracy: ± 1%; 8. Working mode of paraffin flowing: automatic soft-touch switch, foot-operated switch control; 9. Time presetting: can set the time for boot and shutdown within a week; 10. Freezing table temperature: room temperature ≤ -20℃, delay protection; 11. Freezing table dimension: 330×322mm 12. Power supply voltage: AC220V 50Hz, AC110V 60Hz 13. Power: 800VA (SF-BM Ⅲ), 100VA (SF-BLⅢ), 150VA (SF-BC) 14. Dimension: 650 × 580 × 450mm (SF-BM Ⅲ), 652×380×425mm (SF-BLⅢ), 602×380×425mm（SF-BC） 15. Weight: 29kg (SF-BM Ⅲ), 20kg (SF-BLⅢ), 12kg (SF-BC)

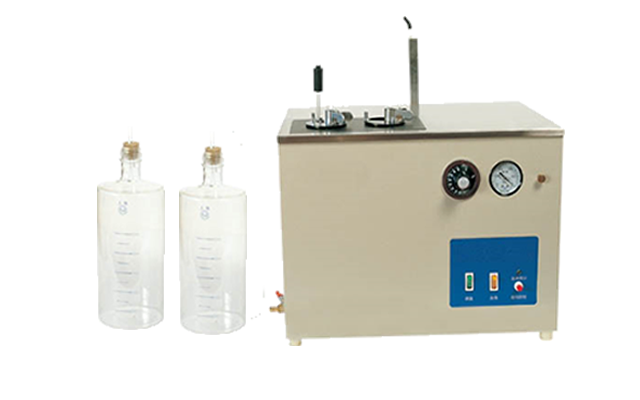

The instrument is specially designed as per ASTMD 445 for washing capillary viscometer used for testing petroleum products. It can be used to wash all types of capillary viscometers, such as Ostward types, Pinkevitch types, Ubbelohde types, Reverse-flow types and Fenske types, as well as graduated cups, graduated flasks, distillation flasks and other glassware. It is especially suitable to wash viscometer tubes used for heavy oil determination. It is convenient and simple to be operated with less solvent oil and high efficiency. It is widely used in petroleum products producing companies, it is relatively to colleges and universities laboratories and scientific research institutes. The instrument can be taken as a auxiliary suction device for other tests, such as mechanical impurity test, and insoluble test.
Technical Parameters
1. Power supply: AC220 V, 50 Hz; 2. Total power consumption: 1200 W; 3. Heating mode: by a water bath; 4. Test tubes preheated: 2 pieces 5. Heating power: 1000 W; 6. Heating temperature control: by a temperature controller; 7. Temperature controlling range: 35°C～100°C; 8. Washing mode: by sprayed solvent oil; 9. Dimensions (m): 0.81*0.46*0.52

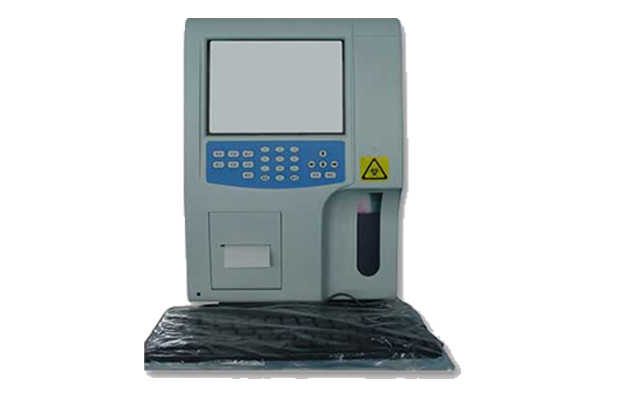

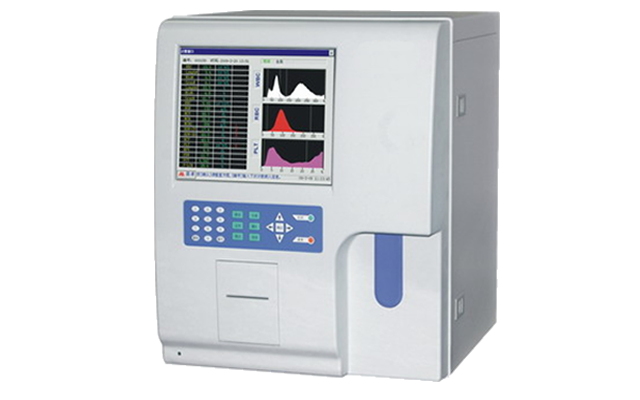

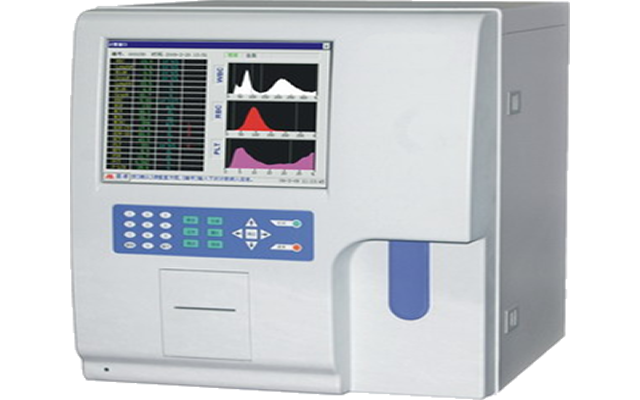

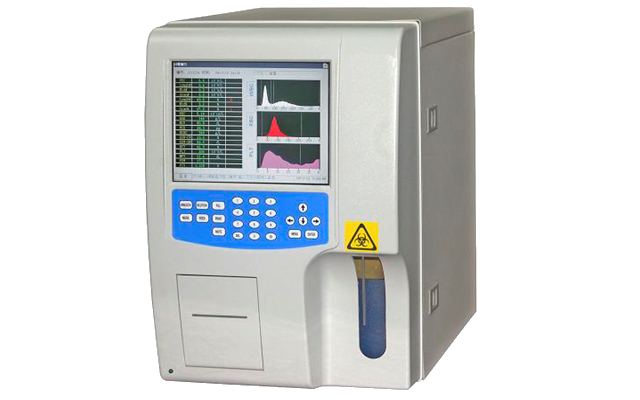

Fully automated, compact, flexible and low cost 3-part differentiation of WBC: 19 parameters + 3 histograms 2 sample modes: whole blood and prediluted Throughput: 60 samples per hour Automatic diluting, lying, mixing, rinsing and clog-clearing Automatic sample probe cleaning Up to 35,000 sample results (including histograms) can be stored Built-in thermal recorder, optional external printer Reagent expired alarm Color LCD display 22 parameters 3-part differ Auto Hematology Analyzer
Technical Parameters
WBC Lymph# Mid# Gran# Lymph% Mid% Gran% RBC HGB HCT MCV MCH MCHC RDW-CV RDW-SD PLT MPV PDW PCT and Histogram for WBC, RBC, PLTPrinciple
Electrical resistance for counting and SFT method for HGBSample Volume
Prediluted: 20µl Whole blood: 9-20µl(option)Aperture Diameter
WBC: 100µm RBC/PLT: 80µmThroughput
Over 60 samples per hour Memory: 35,000 results Performance: Parameters Precision CV% WBC(10 /L) 2.0% RBC 1.5% PLT 4.0% MCV(fL) 0.5% HGB(g/dL) 1.5%Display
Large color LCD, displays all parameters result with histogram of WBC, RBC and PLT Resolution: 800×600Menu
Count, Sample mode, Review, Quality control, System setting, Reference value, System service, Calibration, Copyright, Shutdown Alert 25 sets of alert messageInput/Output
USB(keyboard,mouse,flash disk), RS232, parallel Print Graphic thermal printer with various printing format, optional external printerOperating Environment
Temperature: 10-35℃ Humidity: ≤70%Power Requirement
AC110-240V, 60/50Hz, 2ADimension
400mm(L)×400mm(W)×460mm(H)Weight
25Kg
1. Computer automatic program control that can preset any boot or shutdown time within a day or a week; 2. Using silicone rubber heating element, quick and uniform heating, energy-saving and reliable; 3. Using integrated module for temperature measurement from U.S. company DALLAS, with high precision and reliable performance, liquid crystal display; icon display of working status; 4. Paraffin cylinders, paraffin mouth, left and right saving box and working table work independently, five temperature control channels and multi-temperature protection devices; safe, reliable and energy saving; 5. With memory and automatic recovery functions, automatically keep the preset temperature after running; 6. Split design, free combination of embedded centre and freezing table; 7. Using new frequency-conversion compressor with freezing temperature adjustable; 8. The temperature of freezing table can be set as ＋50℃～－35℃; 9. Small cooling units can freeze embedded tissues; 10. Large capacity (5 litres) of melting paraffin cylinder to ensure the completion of embedded tissue at one time; 11. Low-voltage lighting system, safe and reliable, manual and foot-operated switches; 12. The heating of working table and storage units facilitate tissue embedding; 13. High precision of time showing of the clock, convenient timing;
Technical Parameters
1. Adopt international advanced heating concepts; 2. Paraffin cylinder capacity: 5 litres; 3. Temperature control range of tweezers saving table: room temperature ~ 99 ℃; 4. Temperature control range of melting paraffin cylinder: room temperature ~ 99 ℃; 5. Temperature control range of saving box: room temperature ~ 99 ℃; 6. Temperature range of working table: room temperature ~ 99 ℃; 7. Temperature control accuracy: ± 1%; 8. Working mode of paraffin flowing: automatic soft-touch switch, foot-operated switch control; 9. Time presetting: can set the time for boot and shutdown within a week; 10. Freezing table temperature: room temperature ≤ -20℃, delay protection; 11. Freezing table dimension: 330×322mm 12. Power supply voltage: AC220V 50Hz, AC110V 60Hz 13. Power: 800VA (SF-BM Ⅲ), 100VA (SF-BLⅢ) 14. Dimension: 650 × 580 × 450mm (SF-BM Ⅲ) , 652×380×425mm(SF-BLⅢ) 15. Weight: 29kg (SF-BM Ⅲ) 20kg (SF-BLⅢ)

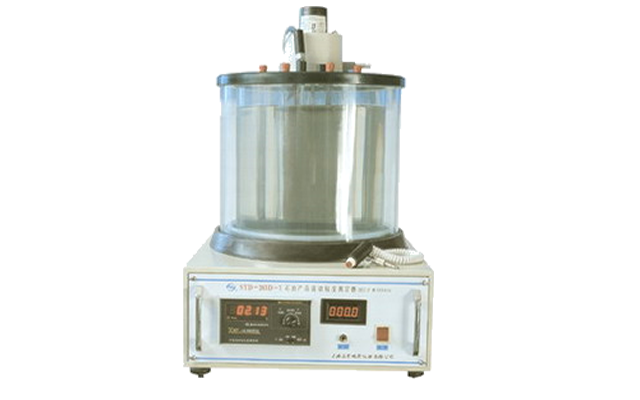

The instrument is designed and made as per ASTM D445 "Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity" and the "Technical Condition for Petroleum Products Kinematic Viscosity Tester". It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquids) under a certain temperature.
Technical Parameters
1. Power supply: AC 220±10%, 50 Hz; 2. Heating device: By an electric heater of 600 W; 3. Stirring motor: 6 W, 1200 RPM; 4. Temperature controlling range: ambient temperature～100°C; 5. Temperature controlling accuracy: ±0.1°C; 6. Ambient temperature: ambient temperature∼35°C; 7. Relative humidity: ≤85％; 8. Capillary viscometer: 8 pieces in a group. Their inner diameters are 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, and 3.0 mm respectively. 9. Dimensions (m): 0.61*0.41*0.85
3-part differentiation of WBC: 19 parameters + 3 histograms 2 sample modes: whole blood and prediluted Throughput: ≤2 minute per sample Up to 35,000 sample results (including histograms) can be stored Built-in thermal recorder, optional external printer Auto reverse flush and high voltage burning, clog clearing Color LCD display
Technical Parameters
Parameters WBC Lymph# Mid# Gran# Lymph% Mid% Gran% RBC HGB HCT MCV MCH MCHC RDW-CV RDW-SD PLT MPV PDW PCT and Histogram for WBC, RBC, PLT Principle Electrical resistance for counting and SFT method for HGB Sample Volume Prediluted: 20µl Whole blood: 9-20µl Throughput ≤1.5 minute per sample Memory: 35,000 results Performance: Parameters Precision CV% WBC(10 /L) 2.0% RBC 1.5% PLT 4.0% MCV(fL) 0.5% HGB(g/L) 1.5% Display Large color LCD, displays all parameters result with histogram of WBC, RBC and PLT Resolution: 800×600 Menu Background test, Count, Sample mode, Review, Quality control, System setting, Reference value, System service, Calibration, Copyright, Shutdown Alert 25 sets of alert message Input/Output USB(keyboard,mouse,flash disk), RS232, parallel Print Graphic thermal printer with various printing format, optional external printer Operating Environment Temperature: 10-35℃ Humidity: ≤70% Power Requirement AC110-240V, 50/60Hz 2A Dimension 273mm(L)×420mm(W)×415mm(H) Weight 16Kg
1. Computer automatic program control that can preset any boot or shutdown time within a day or a week; 2. Adopting advanced micro-processing controller for temperature control technology from the United States, and uses LED for temperature display, with the work status intuitive; 3. Paraffin cylinders, paraffin mouth, left and right saving box and working table work independently; 4. Advanced flexible heating method, which overcome the traditional shortcomings of excessive heating temperature, quick heating and high precision, as well as double overheat protection, safe, reliable and energy saving; 5. With memory and automatic recovery functions, automatically keep the preset temperature after running; 6. Small freezing unit can freeze the embedded tissue freely; 7. Large capacity paraffin cylinder to ensure the completion of tissue embedding at one time; 8. Can be freely combined with freezing table; 9. Low-voltage lighting system, safe and reliable; 10. The heating of working table and storage units facilitate tissue embedding; 11. Using granite work station of a large area to facilitate the cleaning of paraffin.
Technical Parameters
1. Temperature control range of paraffin melting cylinder: 55 ~ 70 ℃ 2. Temperature control range of working table: 55 ~ 70 ℃ 3. Temperature control range of temperature keeping cylinder: 55 ~ 70 ℃ 4. Time presetting: can set the time for boot and shutdown within a week; 5. Working mode of paraffin flowing: automatic soft-touch switch, foot-operation switch control; 6. Power supply voltage: 200VAC 50Hz 7. Power: 800W 8. Dimension: 550 × 500 × 360mm 9. Weight: 28 Kg
The instrument is designed and made as per ASTN D445"Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity, and the "Technical Condition for Petroleum Products Kinematic Viscosity Tester". It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquid) at a certain temperature.
Technical Parameters
1. Power supply: AC 220V±10%, 50 Hz; 2. Heating power: two grades; 1000 W (For auxiliary heating) and 650 W (For temperature controlling); 3. Stirring motor: 6 W, 1200 RPM; 4. Temperature controlling point: 20, 40, 50, 80 and 100 °C; 5. Temperature controlling accuracy: ±0.01°C; 6. Constant temperature bath: 20 L, two layers bath; 7. Ambient temperature: -10°C～+35°C; 8. Relative humidity: ＜85％; 9. Temperature sensor: High precision and heat sensitive resistance; 10. Total power consumption: not more than 1800 W; 11. Capillary viscometer: 11 pieces in a group, Inner diameters of them are 0.4, 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5 and 4.0 mm respectively. 12. Dimensions (m): 0.61*0.56*0.76, 0.44*0.44*0.48
3-part differentiation of WBC: 19 parameters + 3 histograms 2 sample modes: whole blood and prediluted Throughput: ≤2 minute per sample Up to 35,000 sample results (including histograms) can be stored Built-in thermal recorder, optional external printer Auto reverse flush and high voltage burning, clog clearing Liquid sensor Color LCD display 22 parameters 3-part differ Auto Hematology Analyzer
Technical Parameters
Parameters WBC Lymph# Mid# Gran# Lymph% Mid% Gran% RBC HGB HCT MCV MCH MCHC RDW-CV RDW-SD PLT MPV PDW PCT and Histogram for WBC, RBC, PLT Principle Electrical resistance for counting and SFT method for HGB Sample Volume Prediluted blood 20µl Whole blood: 9-20µl Throughput ≤2 minutes per sample Memory: 35,000 results Performance: Parameters Precision CV% WBC(10 /L) 2.0% RBC 1.5% PLT 4.0% MCV(fL) 0.5% HGB(g/L) 1.5% Display Large color LCD, displays all parameters result with histogram of WBC, RBC and PLT Resolution: 800×600 Menu Background test, Count, Sample mode, Review, Quality control, System setting, Reference value, System service, Calibration, Copyright, Shutdown Alert 25 sets of alert message Input/Output USB(keyboard,mouse,flash disk), RS232, parallel Print Graphic thermal printer with various printing format, optional external printer Operating Environment Temperature: 10-35℃ Humidity: ≤70% Power Requirement AC110-240V, 50/60Hz 2A Dimension 273mm(L)×420mm(W)×415mm(H) Weight 16Kg

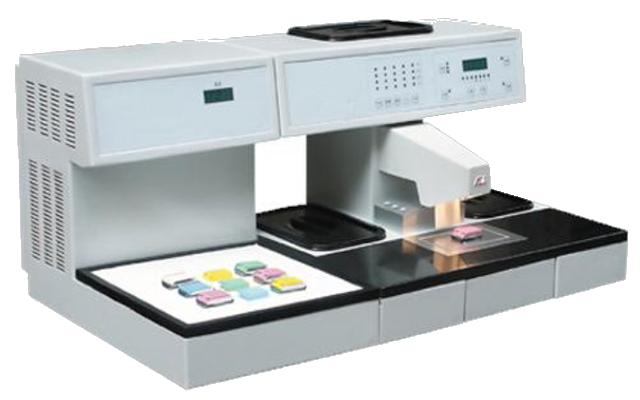

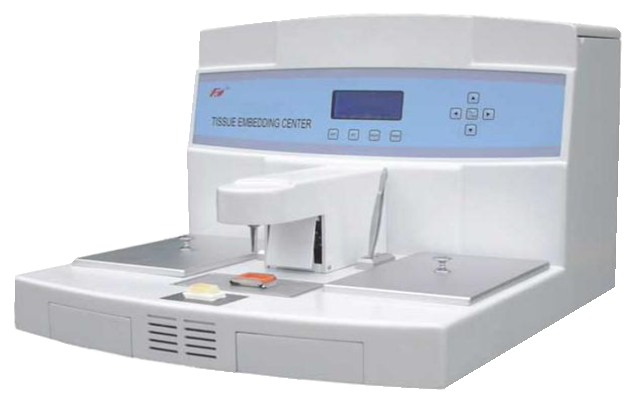

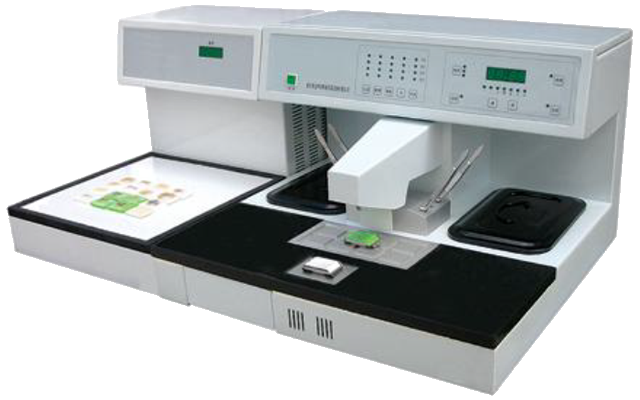

It can be on any type of embedded boxes, embedded base mold, embedded frame and dehydrated tissue. It has a large capacity to store more tissues. This machine can be used independently or used for film sharing.
Technical Parameters
1. Temperature settings: room temperature ~ 99 ℃ 2. with the function of delay protection 3. Capacity: 4.5 L 4. Power supply voltage: AC220V 50Hz, AC110V, 50Hz 5. Power: 150VA 6. Dimension: 602 × 380 × 425mm 7. Weight: 12kg
The instrument is designed and made as per ASTM D445"Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity". It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquid) at a certain temperature. It is in accord with SY/T 5651 "Technical Condition for Petroleum Products Kinematic Viscosity Tester".
Technical Parameters
1. Power supply: AC220±10%, 50 Hz; 2. Heating power: (1) Auxiliary heating: 1000 W (2) Temperature controlling: 650 W; 3. Stirring motor: 6 W, 1200 RPM; 4. Temperature range: ambient temperature～100°C; 5. Temperature controlling accuracy: ±0.01°C; 6. Constant temperature water bath: 20 L, two layer bath; 7. Ambient temperature: -10°C～+35°C; 8. Relative humidity: ＜85％; 9. Timing device: 0.1s ～999.9 s, resolution is o.1 s; 10. Capillary viscometer: 11 pieces in a group; Inner diameters of them are 0.4, 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5 and 4.0 mm respectively; 11. Dimensions (m): 0.61*0.56*0.76, 0.44*0.44*0.48
12 pre-determined animal settings (dog, cat, horse, pig, cow, rabbit, goat, rat, mouse, buffalo, camel, sheep ) + 4 options 3-part differentiation of WBC: 19 parameters + 3 histograms 2 sample modes: whole blood and prediluted Throughput: ≤2 minute per sample Up to 35,000 sample results (including histograms) can be stored Built-in thermal recorder, optional external printer Auto reverse flush and high voltage burning, clog clearing Color LCD display
Technical Parameters
Parameters WBC Lymph# Mid# Gran# Lymph% Mid% Gran% RBC HGB HCT MCV MCH MCHC RDW-CV RDW-SD PLT MPV PDW PCT and Histogram for WBC, RBC, PLT Principle Electrical resistance for counting and SFT method for HGB Sample Volume Prediluted blood 20µl Whole blood: 9-20µl(adjustable) Throughput ≥30 samples per hour Memory: 35,000 results Performance: Parameters Precision CV% WBC(10 /L) 2.0% RBC 1.5% PLT 4.0% MCV(fL) 0.5% HGB(g/L) 1.5% Display Large color LCD, displays all parameters result with histogram of WBC, RBC and PLT Resolution: 800×600 Menu Count, Sample mode, Review, Quality control, System setting, Reference value, System service, Calibration, Copyright, Shutdown Alert 25 sets of alert message Input/Output USB (keyboard, mouse, flash disk), RS232, parallel Print Graphic thermal printer with various printing format, optional external printer Operating Environment Temperature: 10-35℃ Humidity: ≤70% Power Requirement AC110-240V, 50/60Hz 2A Dimension 273mm(L)×420mm(W)×415mm(H) Weight 16Kg
1. Computer automatic program control that can preset any boot or shutdown time within a day or a week; 2. Adopting advanced micro-processing controller for temperature control technology from the United States, and uses LED for temperature display, with the work status intuitive; 3. Paraffin cylinders, paraffin mouth, left and right saving box and working table work independently; 4. Advanced flexible heating method, which overcome the traditional shortcomings of excessive heating temperature, quick heating and high precision, as well as double overheat protection, safe, reliable and energy saving; 5. With memory and automatic recovery functions, automatically keep the preset temperature after running; 6. Split design, free combination of embedded centre and freezing table; 7. Low-voltage lighting system, safe and reliable; 8. The heating of working table and storage units facilitate tissue embedding; 9. Using granite work station of a large area to facilitate the cleaning of paraffin.
Technical Parameters
1. Adopt international advanced heating concepts, which prevent paraffin from retraction when the temperature exceeds 70℃, and avoid damage to tissue sample; 2. Temperature range of tweezers saving unit: 55 ~ 70 ℃ 3. Temperature range of paraffin melting cylinder: 55 ~ 70 ℃ 4. Temperature range of working table: 55 ~ 70 ℃ 5. Temperature control range of working table: 55 ~ 70 ℃ 6. Temperature control accuracy: ± 1%; 7. Time presetting: can set the time for boot and shutdown within a week; 8. Power supply voltage: 200VAC 50Hz 9. Power: 800W 10. Dimension: 550 × 500 × 360mm (KD-BM) 345x500x360mm (KD-BL) 11. Weight: 28 Kg (KD-BM), 25kg (KD-BL) 12. Working mode of paraffin flowing: automatic soft-touch switch, foot-operation switch control; 13. Freezing table temperature: room temperature ~ -20 ℃
The instrument is designed and made as per ASTMD 445 "Asphalt Kinematic Viscosity Test (Capillary Viscometer Methods" is a Standard Test Methods use for Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine kinematic viscosity of asphalt at a certain temperature.
Technical Parameters
1. Power supply: AC 220V±10%, 50 Hz; 2. Heating power: two grades; 1000 W for auxiliary heating and 600 W for temperature controlling; 3. Bath temperature: ambient temperature～180.0°C; 4. Temperature controlling accuracy: ±0.1°C; 5. Mercury thermometer: (1) Rod type (2) Scale division: 0.1 °C; (3) Measurement range: 100~150°C or 150~200°C; 6. Bath cubage: not less than 23 L; 7. Sample quantity: 3 piece at the same time; 8. Stirring motor: 6 W, 1200 RPM; 9. Ambient temperature: -10°C～+35°C; 10. Relative humidity: ＜85％; 11. Temperature sensor: Industrial platinum resistance, Pt100; 12. Total Power consumption: not more than 1800 W; 13. Capillary viscometer: 7 pieces of Cannon-Fenske reserve-flow capillary viscometer tubes in a group; their models are 200, 300, 350, 400, 450, 500, 600 respectively (Corresponding diameters are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00 mm). The users should prepare Ubbelohde type viscometer tubes by themselves. 14. Dimensions (m): 0.61*0.56*0.76, 044*0.44*0.48

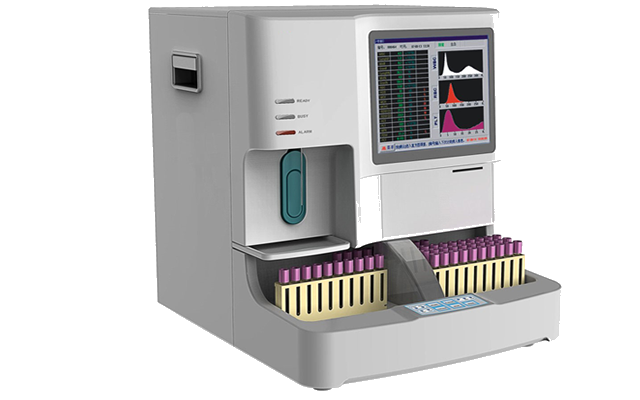

Throughput of 80 samples per hour without operator intervention Fully auto Cap piercing sampler with 50 samples capacity allowing efficient testing Combined with the Cap Piercing Sampler, the flexible Barcode Reader provides positive sample identification, optimizing laboratory efficiency
Technical Parameters
Parameters 19 parameters + 3 histograms Principle Electrical impendence for counting and SFT method for HGB Throughput: up to 80 samples per hour Sampler capacity: 50 samples Testing mode: manual open(whole blood,prediluted); sampler close(whole blood) Sample Volume: Sampler mode: whole blood 200 µL Manual mode: whole blood 200µL; prediluted 40µL Aperture Diameter WBC: 100µm RBC/PLT: 80µm Memory: 35,000 results with histogram Performance: Parameters Precision CV% WBC(10 /L) 2.0% RBC 1.5% PLT 4.0% MCV(fL) 0.5% HGB(g/dL) 1.5% Display Large color LCD, displays all parameters result with histogram of WBC, RBC and PLT Resolution: 800×600 Menu Count, Sample mode, Review, Quality control, System setting, reference value, System service, Calibration, Copyright, Shutdown Alert 25 sets of alert message Input/Output USB (keyboard, mouse, flash disk), RS232, parallel Print Graphic thermal printer with various printing format, optional external printer Operating Environment Temperature: 18-30℃ Humidity: ≤70% Power Requirement AC100-240V, 60/50Hz Dimension 600mm (L) ×520mm (W) ×570mm (H) Weight 30Kg
1. Computer automatic program control that can preset any boot or shutdown time within a day or a week; 2. Adopting advanced micro-processing controller for temperature control technology from the United States, and uses LED for temperature display, with the work status intuitive; 3. Paraffin cylinders, paraffin mouth, left and right saving box and working table work independently; 4. Advanced flexible heating method, which overcome the traditional shortcomings of excessive heating temperature, quick heating and high precision, as well as double overheat protection, safe, reliable and energy saving; 5. With memory and automatic recovery functions, automatically keep the preset temperature after running; 6. Split design, free combination of embedded centre and freezing table; 7. Low-voltage lighting system, safe and reliable; 8. The heating of working table and storage units facilitate tissue embedding; 9. Using granite work station of a large area to facilitate the cleaning of paraffin. 10. Small freezing unit to freeze the embedded tissue at any time; 11. Large capacity paraffin melting cylinder to ensure the completion of tissue embedding at one time.
Technical Parameters
1. Adopt international advanced heating concepts, which prevent paraffin from retraction when the temperature exceeds 70℃, and avoid damage to tissue sample; 2. Temperature range of tweezers saving unit: 55 ~ 70 ℃ 3. Temperature range of paraffin melting cylinder: 55 ~ 70 ℃ 4. Temperature range of working table: 55 ~ 70 ℃ 5. Temperature control range of working table: 55 ~ 70 ℃ 6. Temperature control accuracy: ± 1%; 7. Time presetting: can set the time for boot and shutdown within a week; 8. Power supply voltage: 200VAC 50Hz 9. Power: <1000W 10. Dimension: 550 × 500 × 360mm (KD-BMII) 345x500x360mm (KD-BL) 11. Weight: 28 Kg (KD-BMII), 25kg (KD-BL) 12. Working mode of paraffin flowing: automatic soft-touch switch, foot-operation switch control; 13. Freezing table temperature: room temperature ~ -20 ℃
The instrument is designed and made as per ASTMD 445"Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity". It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquids) at a certain temperature. It is also in accord with SY/T5651 "Technical Condition for Petroleum Products Kinematic Viscosity Tester".
Technical Parameters
1. Power supply: AC 220V±10%, 50 Hz; 2. Heating device: an electric heater of 600 W; 3. Refrigeration device: by two compressors; 4. Stirring motor: 6 W, 1200 RPM; 5. Temperature range: ambient temperature～-70°C; 6. Temperature controlling accuracy: ±0.1°C; 7. Constant temperature bath: 5.8 L with stainless steel inner tank; 8. Operation environment: (1) Ambient temperature: ≤30°C; (2) Relative humidity: ≤85％; 9. Temperature sensor: Industrial platinum, Pt100; 10. Illumination: a 6 W/220 V fluorescent lamp; 11. Capillary viscometer: 13 pieces in a group; inner diameter of them are 0.4, 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0 and 6.0 mm respectively (There is no coefficient for viscometer tubes of 5.0 and 6.0 mm, please calibrate it by yourself). 12. Total power consumption: not more than 1700 W; 13. Dimensions (m): 0.64*0.57*1.07
The instrument is designed and made as per ASTM D445"Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity". It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquids) at a certain temperature. The instrument is also in accord with SY/T5651 "Technical Condition for Petroleum Products Kinematic Viscosity Tester". Characteristics: two layers bath; digital temperature controlling; it can cut off a group of heater in time; test time and test results shown by a color LCD. It can time test automatically, preset system parameters, calculate and print viscosity value at the end of test.
Technical Parameters
1. Power supply: AC 220 V±10%, 50 Hz; 2. Heating power: 1700 W; 3. Temperature range: ambient temperature～100.0°C; 4. Temperature controlling accuracy: ±0.01°C; 5. Bath cubage: 20 L; 6. Timing range: 0.0s～9999.9s; 7. Timing accuracy: not more than ±0.05% in 60 min; 8. Sample quantity: 4 piece at the same time; 9. Stirring motor: 6 W, 1200 RPM; 10. Operation environment: (1) Ambient temperature: -10°C～35°C; (2) Relative humidity: ≤85％; 11. Temperature sensor: Industrial platinum, Pt100; 12. Total power consumption: not more than 1800 W; 13. Capillary Viscometer: 11 pieces in a group; inner diameters of them are 0.4, 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, and 4.0 mm respectively. 14. Dimensions (m): 0.64*0.54*0.85
The instrument is able to determine the kinematic viscosity of liquid petroleum products (Newton liquid) under a fixed temperature environment as per ASTM D445, Technical Parameters Main index:

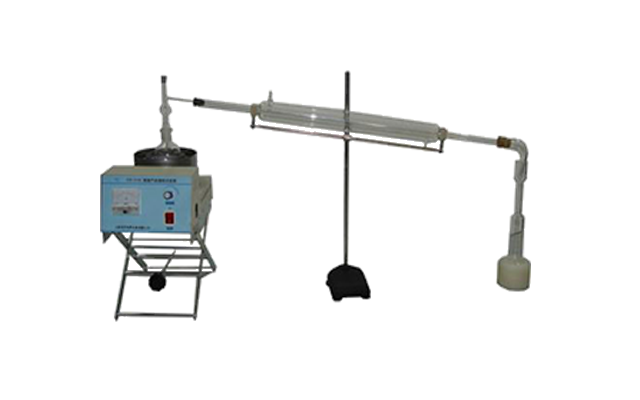

The instrument is designed and made as per ASTMD 86"Test Methods for Distillation Characteristics of Petroleum Products". It is suitable to determine distillate of engine fuel, solvent oil, and light petroleum products.
Technical Parameters
1. microprocessor controls the total test, with menu for operation. 2. automatic control the water bath, timing, viscosity calculation, capillary viscometer washing and drying, print the report. 3. Automatic self diagnostic, remind where, how in faults, so that to do it efficiently.Main index:
1. Power supply: AC220V±10%, 50 Hz; 2. Shield of flask: Made by iron sheet; its surface is plated to black; it has a wooden handle; there is a slot at the opposite side of handle to let branch tube of distillation flask go through. It also has a rectangular observation window and there is transparent mica sheet inserted in the window. 3. Distillation flask: made by harden glass; It can endure temperature of more than 500 °C; Ball diameter of flask is Ф69±1mm, and neck diameter of flask is Ф16±1mm. The angle between branch tube and neck is 75°±3°; 4. Thermometer: 0~360°C; scale division is 1°C; it is in accord with GB514; 5. Holder for refrigeration bath: the refrigeration bath is composed of water bath, refrigeration tube and joint for water inlet and outlet; the refrigeration tube is made of copper tube of ф16×1; inner surface of refrigeration tube is smooth and plated with Ni and Cr; the angle between refrigeration tube and water level is 15°; the length of refrigeration tube is 555±3mm when measured from the lower section of outer surface of refrigeration tube; the water outlet is in circular form; The height of joint for water outlet should be higher than the upper section of refrigeration tube for at least 10 mm, so as to ensure better refrigeration; the size of refrigeration bath is 180 mm × 100 mm×150 mm. 6. Heating system: it is composed of heating furnace, temperature adjustment circuit, and case. Its power is 1000 W/220 V and the heating rate is adjustable. 7. Graduated flask and iron block: there are two different graduated flasks, 10 ml and 100 ml; scale division of graduated flask of 10 ml is 0.1 ml and scale division of graduation of 100 ml is 1 ml; the iron block is made of carbon steel and is plated with Cu, Ni and Cr, so it is hard to rusted in the water. The iron block is placed around graduated flask to prevent graduated flask floating in the water. 8. Spaced ring for electric furnace: It is made of SiC; their outer diameters are Ф105mm, and there are three types of inner diameters, Ф50mm, Ф30mm, and with a gap. 9. Ambient temperature: -10~+35°C; 10. Relative humidity: ≤85%; 11. Total power consumption: not more than 1100 W; 12. Dimensions (m): 0.79*0.36*0.71 (Old type: 0.77*0.59*0.33)
This instrument is design and made as per ASTM D86. Test the content of the distillate of the asphaltum in the required temperature.
Technical Parameters
Electric Stove Heating Power: 1000W Power source: 220V 50Hz AC Adjusting temperature continuously with controllable silicon. Dimensions (m): 0.62*0.57*0.36

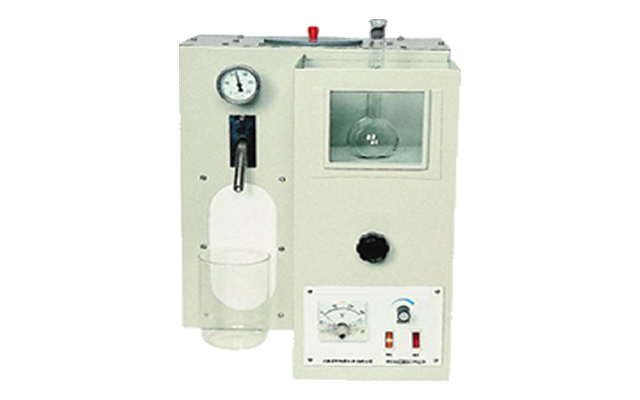

Benzene Distillation Tester instrument is designed and made as per ASTMD 86 "Test Methods for Distillation Characteristics of Benzene". It is suitable to determine distillation characteristics of benzene.
Technical Parameters
1. Heating power of electric furnace for distillation is 1000 W; Equipped with a up and down device; Heating power can be continuously adjusted; heating power is shown by a ampere meter; 2. The types, specifications and sizes of distillation flask and refrigeration device are in accord with GB/T3146. 3. Desktop structure; simple design, convenient installation, and complete accessories, you can make distillation determination for benzene products immediately when you get the instruments.Technical parameters:
1. Power supply: AC 220V±10%, 50Hz; 2. Distillation flask: made of harden glass; it can endure a temperature of more than 500 ℃; 3. Distilling tube with one bulb: as per GB/T 3146; 4. Thermometer: Each one for 70~90℃, 100~120℃, and 125~150℃; scale divisions of them are 0.1 ℃; they are used to determine benzene, toluene, and xylene. 5. Refrigeration device: its total length is 8000 mm and covered with water cooling tube of 4500 mm. It is also equipped with a bending tube and a reducing graduated flask. 6. Heating system: heating power of electric furnace is 1000 W and heating rate can be continuously adjusted. 7. Ambient temperature: -10~+35℃; 8. Relative humidity: ≤85%; 9. Total power consumption: not more than 1100 W;
The instrument is designed and made as per the National Standard ASTM D86 "Test Methods for Distillation Characteristics of Volatile Organic liquids for Industrial Use". It is suitable to determine distillation characteristics of volatile organic liquids for industrial use, and organic solvent for materials. If equipped with a suitable flask, it can also be used to determine distillation characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate fuels and similar petroleum products.
Technical characteristics and performance
1. Adopt quartz glass tubes to enclose heating wire, there is no flame, so it is safe and with long useful life. 2. You can rotate knob to adjust the position of distillation flask. 3. The heating power of electric furnace can be continuously adjusted using the knob on the control panel.Technical parameter
1. Power supply: AC 220V±10%, 50Hz; 2. Heating power of electric furnace: 1000 W; 3. Movable plate for electric furnace: made of SiC plate and their hole diameters are φ38 and φ50 respectively. 4. Distillation flask: Made of harden glass; Outer diameter of ball of flask is φ65; 5. Refrigeration tube: made of copper tube of φ14; its outlet is in circular form. Its length is 560 mm; 6. Graduated flask: 100 ml; scale division is 1 ml; 7. Dimensions (m): 0.62*0.51*0.62
Vacuum Distillation Tester instrument is designed and made as per ASTM D86"Test Methods for Distillation Characteristics of High Boiling Point Petroleum Products at Reduced Pressure". It is specially designed for determining petroleum products of high viscosity. It is suitable to determine high boiling point petroleum products, such as wax and lubricating oil, at a reduced pressure.
Technical parameters
1. Power supply: AC 220 V, 50 Hz; 2. Heating power: (1) For distillation flask: 1000 W; (2) For receiving flask: 350 W; 3. The heating power for distillation flask can be continuously adjusted from 0 to 1000 W; 4. Temperature range of air bath for receiving flask: ambient temperature~100℃ adjustable; 5. Temperature sensor of air bath: Platinum resistance, Pt100; 6. Temperature controlling mode of air bath: Automatically controlled by a digital temperature controller; 7. Temperature controlling accuracy: ±1℃; 8. Cubage of buffer vessel: 1000 ml 9. Max. Residual pressure: ≤2mm Hg; 10. Illumination in air bath for receiving flask: a lamp; 11. Working condition: (1) Ambient temperature: 5~35℃; (2) Relative humidity: < 85％;
The instrument is designed and made as per ASTM D86"Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure". It is suitable to determine distillation characteristics of natural gasoline, vehicle gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products. The instrument has two sets of distillation systems. It can make determination using one set of distillation system or make determination for two same sample or different sample using two set of distillation systems. This highly improves the working efficiency. It is suitable to be used in companies with many samples to be determined. It also increases determination speed for normal customers. It is a desired distillation tester for petroleum products.
Technical parameters
1. Power supply: AC 220V±10%, 50 Hz; 2. Heating power of electric furnace: 1000 W×2; heating power can be continuously adjusted. 3. Volume of graduated flask: 100 ml with scale division of 1 ml; 4. Distillation flask: 125 ml; 5. Thermometer: Total immersion rod type thermometer; their ranges are -2~300°C, and -2~400°C. 6. Movable plate for electric furnace: made of SiC; their hole diameters are φ32, φ38 and φ50 respectively. 7. Temperature controller: (1) Temperature controlling range: room temperature+10～60°C; (2) Temperature controlling accuracy: ±0.5°C; (3) Temperature display mode: by a LED; 8. Ambient temperature: ≤+35°C; 9. Relative humidity: ≤85% 10. Total power consumption: not more than 2500 W; 11. Dimensions (m): 0.83*0.61*0.87

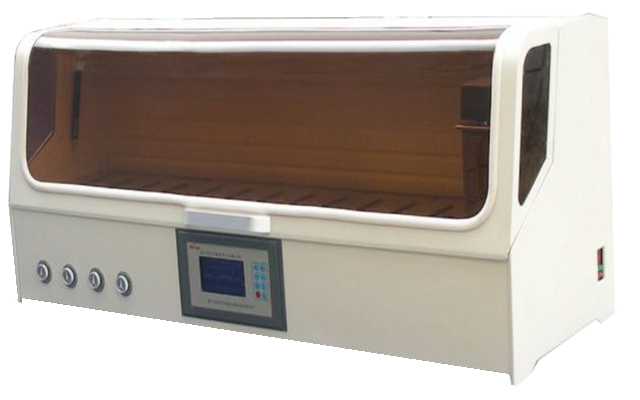

TThe instrument is designed and made as per ASTM D86 "Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure". It is suitable to determine natural gasoline, vehicle gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.
Technical parameters
1. Power supply: AC 220V±10%, 50 Hz; 2. Heating power of electric furnace: 1000 W×2; 3. Volume of graduated flask: 100 ml with scale division of 1 ml; 4. Distillation flask: 125 ml; 5. Thermometer: Total immersion rod type; their temperature ranges are -2~300°C, and -2~400°C; their scale divisions are 1 °C; 6. Movable plate for electric furnace: made of SiC; their hole diameters are φ32, φ38, and φ50. 7. Temperature controller: (1) Temperature controlling range: 0°C～60°C; (2) Refrigeration device: by a compressor; (3) Temperature controlling accuracy: ±0.5°C; (4) Temperature display mode: digitally displayed by a LED; 8. Ambient temperature: ≤+35°C; 9. Relative humidity: ≤85%; 10. Total power consumption: not more than 5000 W; 11. Dimensions (m): 0.83*0.61*0.87
The instrument is designed and made as per ASTM D86 "Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure". It is suitable to determine distillation characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products. The instrument is a low temperature petroleum products distillation test using single distillation system. It is a desired low temperature petroleum products distillation tester.
Technical characteristics
1. Adopt digital temperature controller, heater, refrigeration device and stirrer to form a constant temperature bath, the temperature is uniform in the bath. It can totally meet test requirements. 2. Use a special heating furnace to ensure your safety during determination; heating power can be continuously adjusted to meet test requirements. 3. The instrument is with complete accessories and it is convenient to be operated, so you can make distillation determination at a low temperature immediately when you get it.Technical parameters
1. Power supply: AC 220V±10%, 50 Hz; 2. Heating power of electric furnace: 1000 W; 3. Volume of graduated flask: 100 ml with scale division of 1 ml; 4. Distillation flask: 125 ml; 5. Thermometer: Total immersion rod type; scale ranges are -2～+300°C and -2～+400°C; Their scale divisions are 1 °C; 6. Movable plate for electric device: SiC plate; their hole diameters areφ32, φ38 and φ50; 7. Temperature controller: (1) Temperature controlling range: 0～60°C; (2) Temperature controlling accuracy: ±0.5°C; (3) Temperature display mode: Digitally displayed by a LED; 8. Ambient temperature: ≤+30°C; 9. Relative humidity: ≤85%; 10. Refrigeration system: new type of refrigerated compressor; 11. Total power consumption: not more than 2500 W; 12. Dimensions (m): 0.72*0.59*0.66

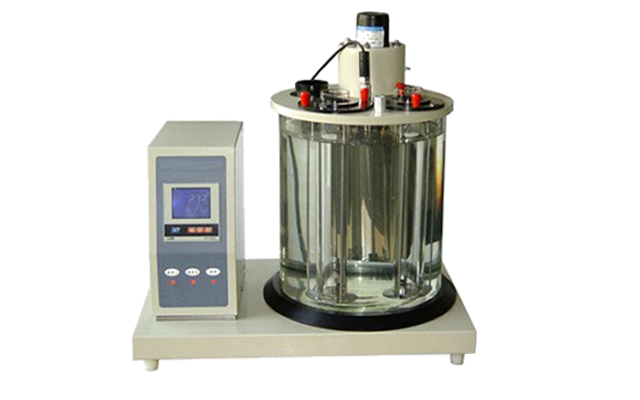

The instrument is designed and made as per ASTM D1298"Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter Methods)". It is suitable to determine density of liquid petroleum products using a densimeter.
Working condition:
1. Ambient temperature: -10°C ～ +40°C; the temperature should not change for more than ±2°C; 2. Relative humidity: ≤85％; 3. The instrument should be placed on a flat workbench during operation and please try your best to reduce air convection during a test. 4. If the instrument is not used for a long time, please store it at a dry place.Technical parameters
1. Power supply: AC 220V±10％, 50 Hz; 2. Cubage of bath: Ф300×380 mm; 3. Heating power: 700 W; 1000 W; 4. Temperature controller: (1) Temperature controlling range: 0°C～100°C; (2) Temperature controlling accuracy: ±0.2°C; (3) Temperature sensor: Industrial platinum resistance, Pt100; 5. Thermometer: total immersion mercury thermometer with scale division of 0.2 °C;

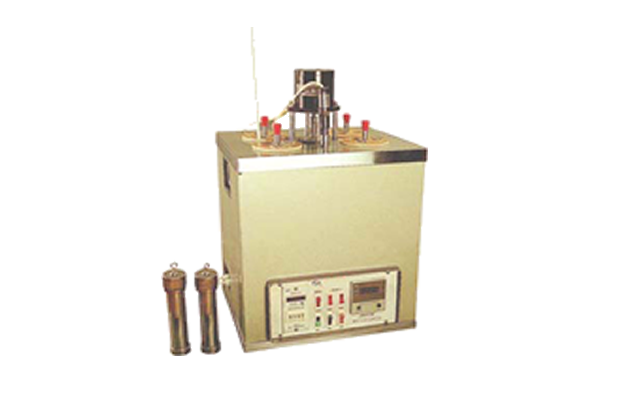

The instrument is designed and made as per ASTMD 1838 "Test Methods for Detection of Copper Corrosion from Liquefied Petroleum Gas by the Copper Strip Tarnish Test". It is suitable to determine corrosiveness of liquefied petroleum gas to copper strip.
Technical Parameters
1. Power supply: AC 220V±10%, 50 Hz; 2. Temperature controlling range: room temperature～100.0°C; 3. Temperature controlling accuracy: ±0.5°C; 4. Temperature controller: Pt100; 5. Heating power: two grades; 600 W for temperature controlling; 1000 W for auxiliary heating; 6. Speed of stirring motor: 1400 RPM; 7. Delay time: 0.01 s～99 hours 99 minutes; 8. Sample hole: 2 pieces; 9. Ambient temperature: -10~35°C; 10. Relative humidity: ≤85%; 11. Total power consumption: not more than 1700 W; 12. Dimensions (m): 0.58*0.52*0.81

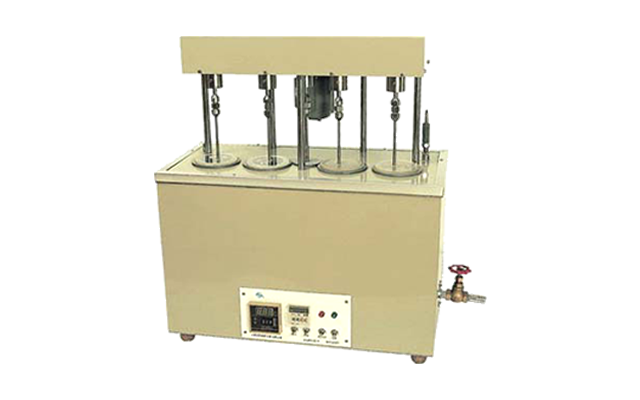

The Test Methods for Rust-Preventing Characteristics of Inhibited Mineral Oil in the Presence of Water, is designed and made as per ASTM D665, and IP135. It is suitable to determine rust-preventing characteristics of inhibited mineral oil, especially the rust-preventing characteristics of turbine oil to iron parts in the presence of water. It is also suitable to determine rust-preventing characteristics of other oils, such as hydraulic pressure oil, circulation oil, as well as liquids heavier, whose gravity is greater than water. The instrument has function of temperature controlling, timing, and alarming.
Working condition
1. The instrument should be placed on a flat and stable workbench. 2. Combustible materials will be involved during a test, so please keep the instrument away from any flame (or spark) during operation.Technical parameters
1. Power supply: 220 V±10%, 50 Hz; 2. Temperature controlling range: 0～100°C; 3. Temperature controlling accuracy: ±1°C; 4. Temperature sensor: Industrial platinum resistance, Pt100; 5. Temperature display mode: digitally displayed; 6. Timing range: 1 min to 24 hours; 7. Time display mode: digitally displayed; 8. Heating power for temperature controlling: 600 W; 9. Heating power for auxiliary heating: 1000 W; 10. Speed of stirring motor: 1400 RPM; 11. Speed for sample stirring: 1000±50 RPM; 12. Sample hole: 4 pieces; 13. Ambient temperature: room temperature~ 35°C; 14. Relative humidity: ≤85％; 15. Total power consumption: not more than 1800 W; 16. Dimensions (m): 0.88*0.43*0.84
The instrument is designed and made as per ASTM D1838 "Test Methods for Detection of Copper Corrosion from Petroleum Products by the Copper Strip Tarnish Test". It is suitable to determine corrosiveness of aviation gasoline, jet fuels, vehicle gasoline, and natural gasoline, hydrocarbon with Reid vapor pressure lower than 124 kPa, solvent oil, diesel oil, distillate oil, lubricating oil and other petroleum products, to copper.
Working condition
1. The instrument should be placed on a flat and stable workbench. 2. Do not put test bomb containing high pressure natural gas or other products into a bath of 100°C; 3. Combustible materials are involved during a test, so please keep the instrument away from any flame (or spark).Technical parameters
1. Power supply: 220 V±10%, 50 Hz; 2. Temperature sensor: Industrial platinum resistance, Pt100. 3. Temperature controlling range: room temperature～100°C; 4. Temperature controlling accuracy: ±1°C; 5. Temperature display mode: Digitally displayed by a LED; 6. Heating power for temperature controlling: 600 W; 7. Heating power for auxiliary heating: 1000 W; 8. Timing range: 1 min～24 hours; 9. Time display mode: digitally displayed by a LED; 10. Sample hole: 4 pieces; 11. Sample quantity: 4 to 12 pieces; 12. Ambient temperature: room temperature to 35 °C; 13. Relative humidity: ≤85％; 14. Total power consumption: not more than 1800 W; 15. Dimensions (m): 0.58*0.46*0.76
This instrument is designed and manufactured according to the provisions of ASTMD 1838 for determination corrosion of the metal when lubricating oil, hydraulic oil, turbine oil and other oils in aqueous, can do copper, silver pieces and liquid rust test.
Instrument features:
★ LCD screen English display interface, menu prompts input; ★ Computer temperature control, automatic timing, high precision and good accuracy; ★ Display the date, clock and other parameter prompts; ★ Stainless steel bath body;Main technical parameters:
Temperature range: room temperature ~ 100 ℃ Timing range: 0 ~ 99 hours arbitrarily set Degree of control accuracy: ± 0.1 ℃ Test holes: 4 Power rate: <1000W Working power: AC220V ± 10% 50Hz
Environment pollution is attracting more and more governments and public concern. The cry for protection to ecological environment and atmospheric environment is increasingly louder. The key culprit to atmospheric destruction and pollution is discharge of CO2 and SO2, which are from combustion of power fuels. Lowering down the sulfur content in the gasoline, diesel oil, heavy oils used in vehicles, ships, and airplanes will highly reduce pollution to atmosphere. Europe and our government have promulgated a series of standards on sulfur content of petroleum products to restrict its production and discharge. SO2 may also cause catalyst poisoning in petrochemical industry and form acid rain in the atmosphere. X-ray Fluorescence Sulfur in Oil Analyzer instrument is specially designed to determine sulfur content in the petroleum products. Adopts energy-dispersive principle, and with integrated design, it is rapid and accurate. It can meet the requirements of American Standard ASTM D4294 on repeatability and reproducibility. It provides a measure to determine sulfur content during petroleum or petrochemical production process. 1. It can be used to determine mass% of total sulfur in the crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha. 2. It can be used to determine total sulfur content in the products of coal chemical industry, such as primary benzene. 3. It can be used to determine total sulfur or sulfide in other liquid or solid powder samples
Characteristics:
1. Electromechanical integration; microprocessor control; large screen LCD display; Man-machine conversation; simple and beautiful; 2. It can determine various products and in a wide measurement range. It is rapid for analysis and it only need little standard sample. 3. Adopts fluorescence intensity ratio analysis methods, it can make correction to temperature and pressure automatically and it can also make correction to ratio of carbon and hydrogen (C/H). 4. It has self-diagnostic function, so it can determine its working state and electric parameters. 5. It takes disposable sample cell with Mylar film, so it can avoid cross contamination. Sample cell is made by a multifunction pressure device, so it is rapid and convenient. It can record sample serial number, S% (m/m), and date. 6. The sample holder can be precisely located. It can move out from inside of the instrument for sample location and anti-leakage parts replacement. It is convenient and it can avoid any contamination to detection system. 7. It can save large quantity of test data. You can browse test data and calibration curve at any time. 8. It uses a thermal printer, so it is easy to replace printing paper. It is needed to speed money on printing ribbon. 9. Equipped with a RS232 serial port, it can connect with any computer or web system. 10. Its safe X-ray protection measures can keep people from injury of X-ray radiation.Main technical parameters:
1. Measurement range: 7 ppm to 5%; 2. Precision: (1) Repeatability: <0.029 ( S+0.6); (2) Reproducibility: <0.063 ( S+0.6); 3. Sample quantity: 2 to 3 ml (it is equal to sample depth of 3 mm to 4 mm); 4. Measurement time: 60, 120, 240, 300, and 600 s at random; 5. It can make determination automatically for single sample. Measurement times: can set 2, 3, 5, 10, and 50 times at random; it will show average value and standard deviation at end of measurement. 6. Calibration curve numbers: it can save 9 calibration curves. 5 pieces of them are linear equation in one unknown and 4 pieces of them are binomial parabola. 7. Working condition: (1) Temperature: 5 to 40 ℃; (2) Relative humidity: ≤85% (30 ℃); (3) Power supply: AC 220V±20V, 50 Hz; (4) Rated power: 30 W; 8. Size and weight: 468 mm×368 mm×136 mm; 13 kg;Synergy Mineral Resources is an indigenous owned company situated at FC Nwufoh House, 7/8 Apapa-Oshodi express way Coconut bus stop, Lagos.Synergy was established with the sole purpose of profering solutions to clients in Oil and Gas industry with high level of professionalism in line with our set goals and objectives. From inception, the company has made customer satisfaction the fulcrum of its business activities. In order to achieve this major objective, we have devised a work system that applies industrial standards to great efficiency and drives a flawless process in our operations. this primary agenda and a sound financial base, has seen us in a short spate of time rendering excellent and satisfactory services to all our clients. our extensive skills encompasses all aspect of Oil and Gas operations such as; Quality control/Assurance, Cargo Superintendence service, Calibration and pressure testing services, Laboratory Equipment Supply and Installation, Health and Environmental Consultancy..
Environmental Services is another division of SMRL that provides a broad range of programs to include initial assessments, monitoring strategies, field sampling, and corrective actions. With a staff of environmental scientists, biologists, and sampling technicians,. SMRL has the capability to evaluate client requirements and develop a strategy designed to address those specific issues.
Our clients have been tremendously satisfied with our services. There statements attest to our professionalism and qality
"The have world-class partnerships with reputable organizations, this makes them stand out,"
J. D.
Client
"There approach and timely delivery is un-matched. They keep to details and have exceptional after sales service"
M.Z.
Client
"There customer service is of global standard. We always enjoy a professional after sales serive."
A. B.
Client
F. C. Nwufoh House, 7/8, Apapa-Oshodi Express Way, Coconut Bus Stop, Apapa, Lagos
info@smgl.com.ng
+234 (1) 453 3184
+234 803 388 6196
